High-Precision Deep-Hole Machining Solution for Agricultural Gearbox Covers

CASE STUDY | CNC CUTTING TOOLS & HIGH-PRECISION MACHINING

High-Precision Deep-Hole Machining Solution for Agricultural Gearbox Covers

Heavy-duty agricultural machinery operates under unrelenting stress. From spring plowing to autumn harvesting, tractors, rotary tillers, and combine harvesters run around the clock in mud, dust, high loads, and non-stop vibration.

At the center of this grueling environment is the transmission gearbox—the power transmission heart of every machine. No matter how much horsepower an engine produces, a gearbox with poor precision or early wear will lead to total transmission failure.

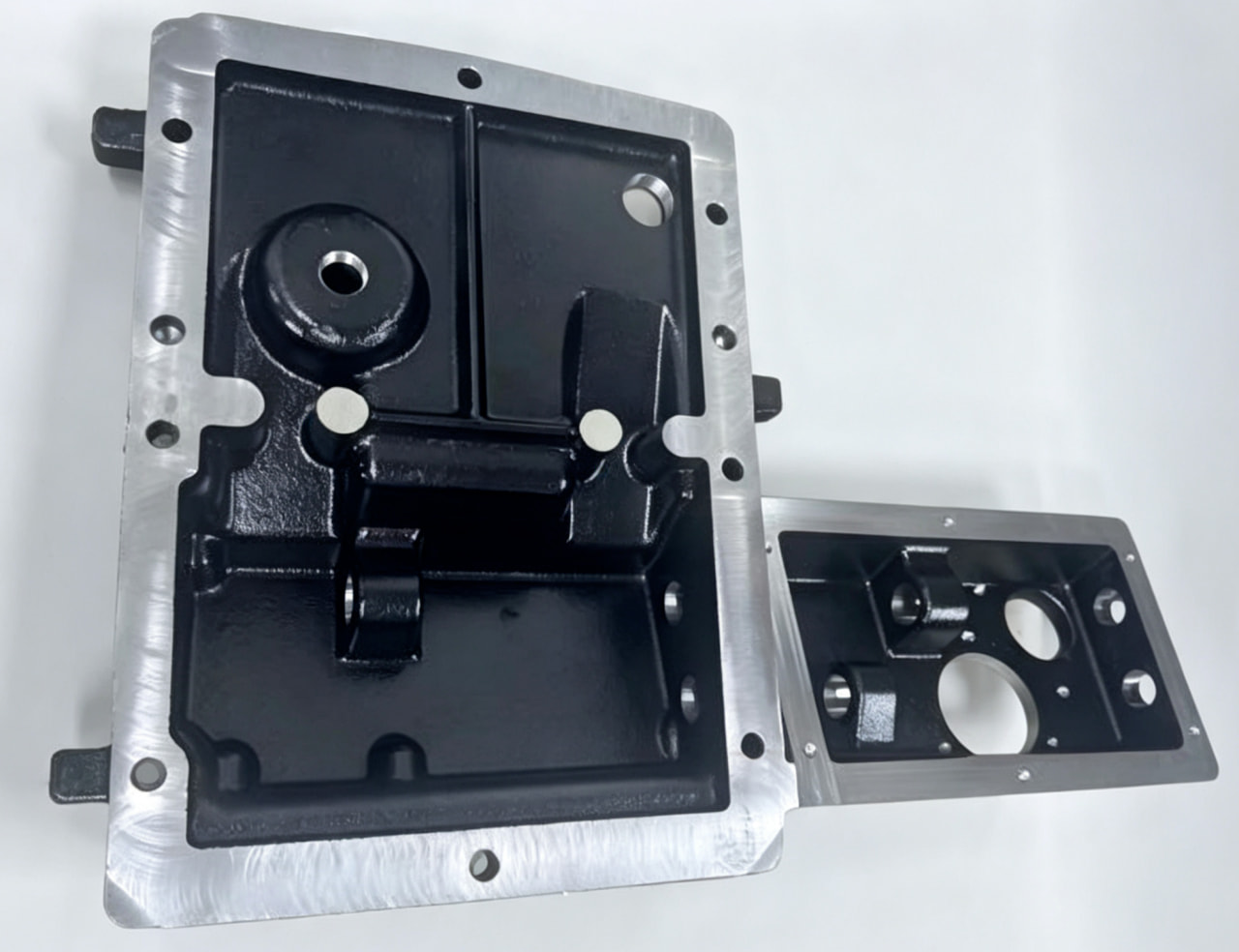

Inside the gearbox cover plate, the fork shaft hole (axle hole for the shift fork puller) plays a decisive role in shifting performance. If this hole loses coaxiality or dimensional accuracy, gear shifting binds, components wear out prematurely, and field breakdowns occur.

This case study demonstrates how Xinrui Zhi Precision solved a high-volume deep-hole machining bottleneck for a leading agricultural component manufacturer using customized PCD reamers and high-performance carbide reamers.

1. The Challenge: Deep-Hole Precision & High Scrap Rates in HT200 Cast Iron

In mass production, machining the fork shaft hole inside the transmission cover plate is notoriously difficult due to the severe depth-to-diameter ratio and material consistency issues in HT200 grey cast iron.

Key Manufacturing Pain Points

· Misalignment & Vibration: The extreme machining depth (450 mm) causes severe tool chatter, dimensional drift, and axial deflection.

· Fork Jamming & Shift Failure: Coaxiality deviations between short and long holes lead to tight spots, fork binding, and premature gear wear.

· Rough Surface Finish: Standard carbide drills and boring bars leave internal wall scratches, failing strict smoothness metrics.

· Batch Instability: Raw material density variations in HT200 grey cast iron caused frequent tool wear and high rework rates.

Part Specifications & Technical Requirements

2. The Custom Tooling Solution by Xinrui Zhi Precision

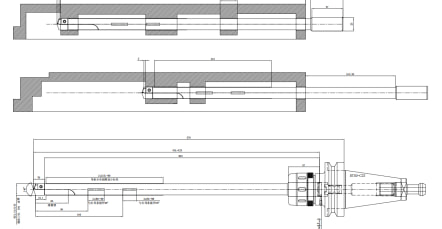

To overcome severe deep-hole deflection and maintain surface integrity in HT200 cast iron, Xinrui Zhi Precision engineered an integrated, multi-stage machining process. Instead of relying on off-the-shelf tooling, we introduced a tailored combination of advanced PCD cutting tools, specialized carbide reamers, and floating compensation systems.

Technical Strategy & Process Architecture

3. Results & Performance Breakdown: Exceeding All Key Metrics

By switching to Xinrui Zhi’s optimized process and PCD cutting tool architecture, the client achieved a dramatic jump in production consistency and part quality.

4. Partner with Xinrui Zhi Precision for Complex CNC Cutting Tools

Deep-hole machining in automotive and agricultural transmission components requires more than just standard catalogue tooling—it requires dedicated process engineering. As a specialized manufacturer of high-precision PCD reamers, carbide reamers, and tailored PCD cutting tools, Xinrui Zhi Precision helps machine shops and distributors across Europe and North America solve challenging machining bottlenecks.
