How to Overcome the Core Challenges in Precision Manufacturing of Hydraulic Valve Bodies: High-Precision Guide Bar Milling Tools

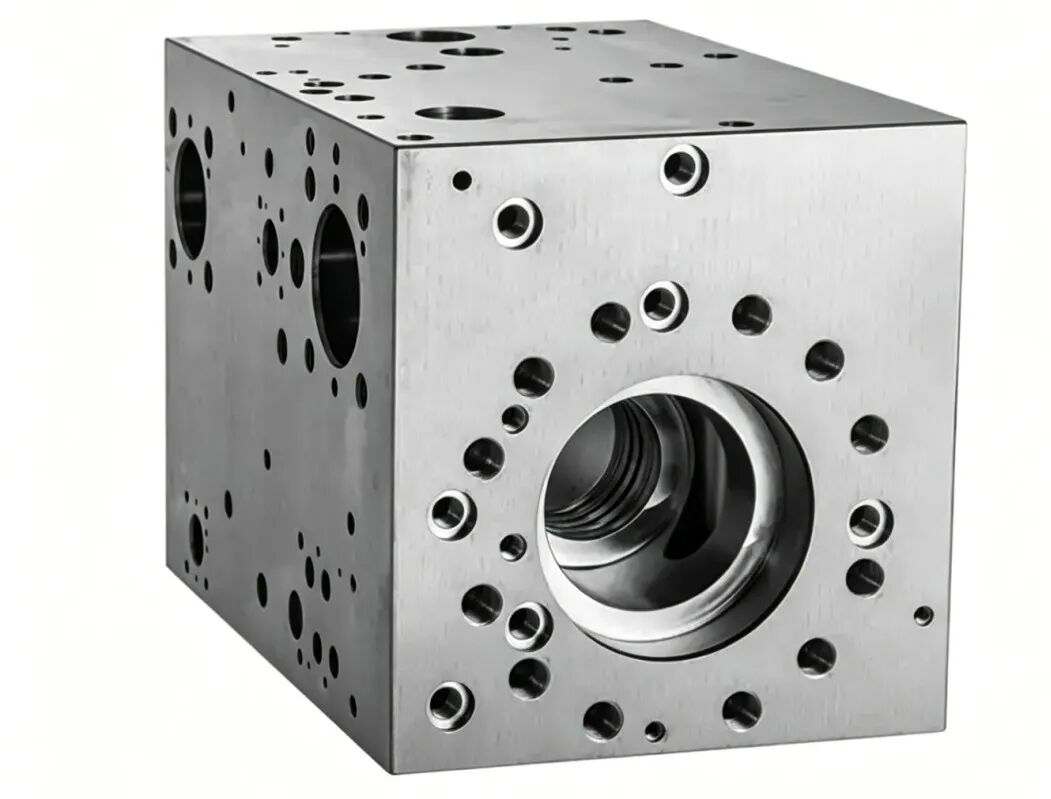

The hydraulic valve body is a core component of hydraulic control systems, widely used in construction machinery, new energy equipment, shipbuilding and metallurgy, automated machine tools, and aerospace applications. It achieves precise pressure and flow regulation through its internal precision oil circuits, while demanding exceptionally high processing accuracy and cleanliness for the valve body during continuous high-pressure operation.
The valve body is densely perforated with intersecting deep oil passages, representing a major processing challenge: these deep holes exhibit a high length-to-diameter ratio, making cutting prone to tool vibration and tool chatter, while straightness and cylindrical accuracy are difficult to control; at intersection points of the passages, brittle internal burrs tend to form that cannot be completely removed by conventional cleaning, and detached contaminants may scratch the valve core or cause internal leakage and valve jamming; chip evacuation in deep holes is inadequate, with chips often entangling the cutting tool and damaging the hole walls; combined with high cutting resistance from hard-to-machine materials like ductile iron and post-processing stress deformation, this significantly leads to dimensional variation, low product yield, and substantially increases manufacturing costs and after-sales failure risks.
Standard industrial equipment: HT250 gray iron
High and medium-pressure construction machinery/Commercial vehicles: RuT450/340 Steel
New Energy Lightweight Material: 6061 Aluminum
High-pressure, heavy-load military and mining machinery components: manufactured from 40Cr/42CrMo steel.
Marine corrosion-resistant condition: 316 stainless steel
In this issue, we present application cases of ductile iron valve bodies. Compared to gray iron, while ductile iron's higher strength enhances component performance, it also imposes stringent requirements on hole machining accuracy and surface quality.
| Machining Dimension | Gray Cast Iron HT250 | Vermicular Graphite Cast Iron RuT450 |
| Cutting Load | Low cutting force, low machine tool operating load, stable and controllable machining process. | Load is 10%~30% higher; cutting resistance is large,machine tool chatter/vibration. |
| Tool Life | Tool wear process is gradual and uniform, long service life, controllable machining cost. | Thermal and mechanical wear are aggravated; chipping occurs frequently, tool life is significantly shortened. |
| Chip Form | Fine and powdery chips, no wrapping/tangling issues, smooth discharge, no hole clogging. | Forms continuous ribbon-like chips, which easily wrap around the tool and workpiece, causing chip evacuation difficulties. |
| Hole Deformation | Stable material stress state, post-machining geometric tolerances are easily guaranteed, very small deformation. | Complex internal stress release, obvious post-machining aging deformation, dimensional accuracy is hard to control. |
| Internal Burr Characteristics | Burrs are brittle and loose in texture, can be removed by washing or light wiping. | Burrs are extremely tough, especially at cross-hole intersections; removal is very difficult, affecting assembly. |
Processing Conditions
● Processed part: Valve body
● Part Material: RuT340
● Processing Equipment: DMG horizontal machining center
● Handle: Compensated HSK handle
● Cooling Method: Internal cooling
Rx
● Processing Content: Valve body (valve core hole)
● technical requirement ：
Orifice diameter tolerance: D18.03 (±0.01)
Depth: 130 mm
No scratches on the surface
Xinrui Zhi (Shenzhen) Precision Machinery Co., Ltd. offers a comprehensive suite of precision guide bar tool combinations covering everything from initial guidance to finishing operations. By selecting HGP cemented carbide reamer inserts, the company not only fully meets customers' stringent requirements for honing-quality surfaces but also ensures exceptional dimensional stability, effectively preventing size reduction and workpiece scratching.
Experimental results demonstrate that our precision lead-cutting tool achieves straightness control at 0.010 and cylindrical accuracy optimized to 0.010—far exceeding customer expectations, effectively reducing costs while enhancing efficiency and overcoming key challenges in precision machining.
Xinrui Zhi (Shenzhen) Precision Machinery Co., Ltd. has decades of expertise in the research, development, production, and service of precision tools. Products include standard tools, custom-made tools, and PCD tools. Services cover comprehensive turnkey solutions, tool management services, and tool grinding, helping you overcome technical challenges in machining while reducing costs and improving efficiency.
