Function is locked on the print, yet the team still debates which grade will cut cleanly and still survive service. A softer stock may look cheaper until corrosion or strength fails validation. Two alloys in the same family can cut very differently once temper, hardness, or stock form changes. Material price can look low while cycle time, tool consumption, and scrap push finished-part cost higher.
Machinability is how a material behaves under a given operation, not a single ranking. Start from non-negotiable part requirements, shortlist grades and conditions, then weigh machining risks, tooling, and total manufacturing cost. Easy cutting is not the same as the right material for the job. Use this guide to move from functional needs to candidate materials, process risks, tooling choices, and a recorded trial before production decisions.
A practical subtitle for this guide: compare engineering materials, understand machining challenges, and choose suitable tooling. HENTRY publishes this page as a material-selection and machinability hub. Sister pages hold the process handbook, cost method, hardened-steel depth, and drill-series detail. Read the tables here, then follow each hard link once when you need depth.
Opening: How to Choose a Material for CNC Machining
What makes a material easy or difficult to machine? Chip form, cutting forces, heat, tool wear, finish, and dimensional stability under a defined operation and setup. Which material properties matter most for your part? The ones that protect function: strength, stiffness, corrosion, temperature, conductivity, wear, weight, and regulated constraints. How do material condition and machining operations affect the choice? Annealed, tempered, aged, or hardened stock changes force and wear; turning, milling, deep drilling, and finish reaming expose different risks on the same grade. How should tooling and manufacturing cost influence selection? Tool substrate, geometry, coating, coolant, and change-out rules change cycle time and scrap, so total cost can favor a higher stock price with lower process risk.

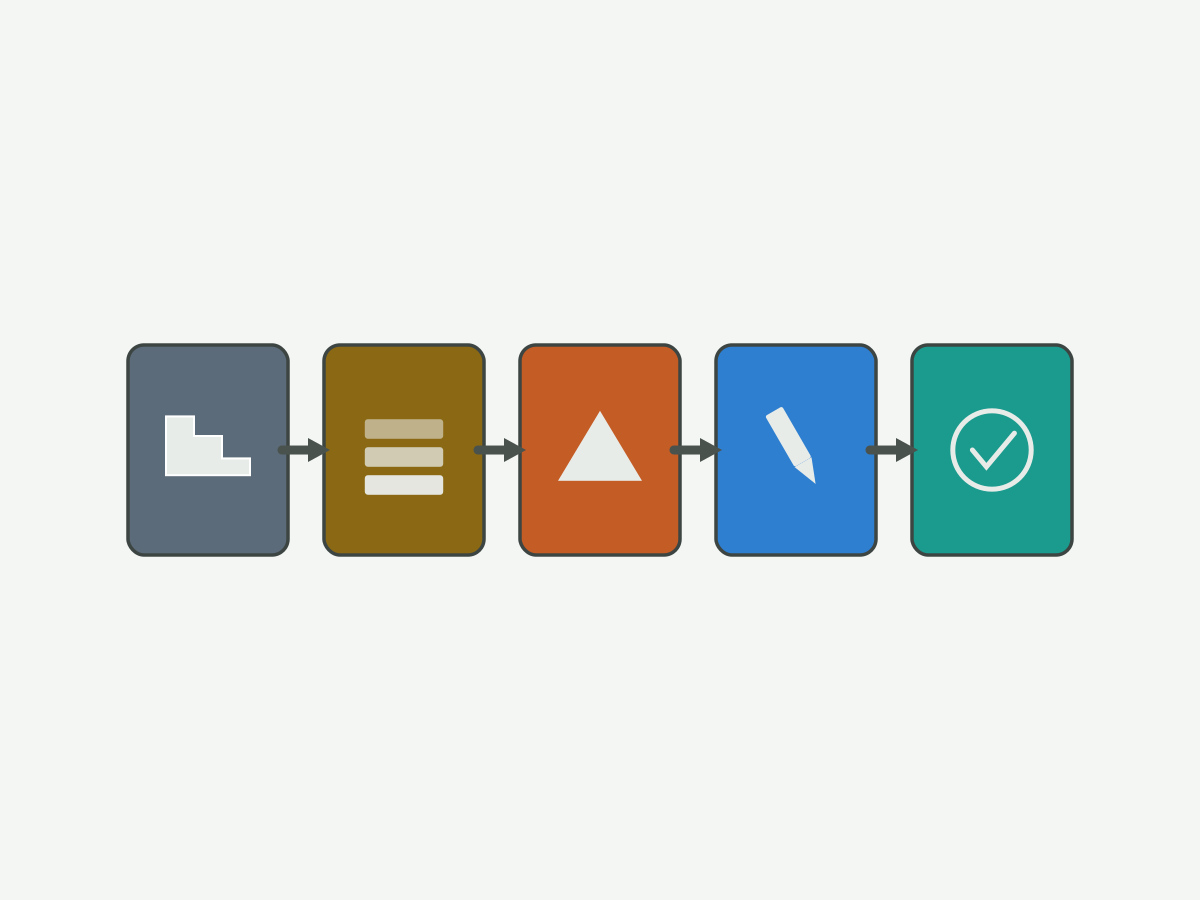

Use the five-stage path below as the spine of this guide. Jump by need: select a material (Ch2-4), compare families (Ch5-10), solve a machining problem (Ch1, Ch3, Ch9-10), or match tooling (Ch11). For process, tolerance, and machine context around this material decision, start from the CNC machining handbook.
| Stage | Question | Output |
|---|---|---|
| Part requirements | What must the part do in service? | Must vs trade-off checklist |
| Candidate materials | Which grades and conditions can meet function? | Shortlist with standard and condition |
| Machining risks | Where will chips, heat, wear, or distortion bite? | Risk map by operation |
| Tooling and process | Which tool families and route fit those risks? | Initial tooling and process plan |
| Validation | What trial proves the choice before volume? | Recorded trial with measurable criteria |
Chapter 1: What Is Machinability?
Machinability describes how a material behaves when cut under defined conditions. It is more than a single score that ranks every alloy for every shop. Treat published ratings as context, then judge behavior on your operation, machine, and tool.
1.1 Machinability: More Than Cutting Speed
Cutting speed is one lever. Chip control, edge life, surface integrity, burrs, and dimensional drift also decide whether a job is stable. A grade that runs fast on a short facing cut can still fail in deep drilling or interrupted milling.
1.2 Tool Life and Wear
Wear modes include abrasive flank wear, crater wear, built-up edge, chipping, and thermal cracking. Material abrasiveness, work hardening, inclusions, and heat at the edge drive which mode appears first. Record wear type, not only minutes to change-out.
1.3 Cutting Forces, Power and Heat
High strength, strain hardening, and low thermal conductivity raise force and heat at the cutting edge. Force spikes show up as chatter, deflection, and size drift. Heat that stays in the chip or the tool changes finish and edge life even when spindle load looks acceptable.
1.4 Chip Formation and Chip Control
Long continuous chips wrap tools and pack flutes. Short brittle chips can abrade edges or jam in blind holes. Chip form depends on grade, temper, rake, chip breaker, feed, and coolant. Poor chip control is a machinability failure even when the surface looks fine.
1.5 Surface Finish, Burrs and Dimensional Stability
Built-up edge, smearing, and elastic recovery spoil finish. Burrs at exit edges fail assembly or leak tests. Residual stress and heat can move thin walls after unclamping. Measure finish and critical size on the same trial that measures tool wear.
1.6 Why Machinability Changes with the Operation
Turning, face milling, slotting, deep drilling, boring, reaming, and tapping load the material differently. The same aluminum alloy may machine easily in open turning and still load a deep drill with chip packing. Always state the operation when you call a material easy or difficult.
1.7 Understanding Machinability Ratings and Their Limits
Index numbers usually compare a test cut against a reference material under fixed conditions. Different standards, reference grades, tool materials, and operations produce different numbers. Do not merge ratings from mixed sources into one universal ranking table. Use ratings only to shortlist, then confirm with shop observation and trial data.
| Evaluation dimension | Shop observation | Measurement method |
|---|---|---|
| Tool wear / edge life | Flank wear land, chipping, BUE, sudden breakage | Wear land measurement; holes or parts per edge; photo log |
| Cutting forces / power | Spindle load spikes, chatter marks, deflection | Load meter; vibration notes; size drift vs stick-out |
| Heat | Discoloration, soft edge, smear, coolant boil-off | Chip color; edge temperature proxies; coolant delivery check |
| Chip control | Bird nests, flute packing, stringers | Chip photo; evacuation time; peck / through-coolant trial |
| Surface and burrs | Torn finish, exit burr, smear | Ra / Rz; burr height; visual edge standard |
| Dimensional stability | Size after cool-down; wall move after unclamp | In-process vs post-cool size; datum re-check |
Shop teams often inherit a single machinability index from a catalog footnote and treat it as destiny. That habit skips operation, coolant, holder rigidity, and edge condition. Rebuild the judgment from the dimension table above whenever the feature set or stock condition changes.
Chapter 2: Start with the Part: Material Selection Requirements
Begin with what the part must do. Do not pick the easiest cutting grade first and then force the design to fit it. Function filters the candidate list before machinability ranks the survivors.
2.1 Strength, Stiffness and Weight Targets
Yield, tensile, fatigue, and modulus decide wall thickness and deflection under load. Weight targets may push aluminum or magnesium even when steel would cut more calmly. Record the load case that cannot move.
2.2 Corrosion, Temperature and Environment
Media, humidity, salt, chemicals, and temperature set stainless, copper alloys, titanium, nickel alloys, or coated systems on the table. A free-machining grade that cannot survive the environment is not a candidate.
2.3 Wear, Friction and Contact Surfaces
Sliding, sealing, and abrasion resistance may demand harder surfaces, specific alloys, or post-hardening. That choice then drives which operations occur before or after heat treatment.
2.4 Conductivity, Magnetism and Special Properties
Electrical or thermal conductivity, magnetic response, and regulatory limits (food, medical, aerospace) can remove entire families. Capture these early so tooling trials do not optimize a dead path.
2.5 Geometry, Features and Critical Tolerances
Thin walls, deep holes, fine threads, and tight bore finishes raise the cost of difficult materials faster than open prismatic faces. Feature risk belongs on the requirements sheet next to material musts.
2.6 Volume, Lead Time and Supply Reality
Stock availability, MOQ, and mill lead time can eliminate an otherwise perfect grade. Near-equivalents need verification of chemistry and condition before you treat them as drop-in replacements.
2.7 Regulatory and Industry Constraints
Specifications, approved vendor lists, and traceability rules may lock grade and condition. Document the governing standard on the RFQ and the traveler.
2.8 Material Requirements Checklist
| Requirement | Must (non-negotiable) | Trade-off allowed |
|---|---|---|
| Strength / stiffness / weight | Min yield, modulus, max mass | Extra stock thickness if design allows |
| Corrosion / environment | Media and temperature window | Coating vs alloy upgrade |
| Wear / contact | Hardness or wear class on contact faces | Local hardening vs through-hardened stock |
| Special properties | Conductivity, magnetism, certs | None if regulated |
| Critical features | Tolerance and finish on keyed features | Secondary ops if cycle allows |
| Supply | Approved grade family | Alternate mill with verified cert |
| Cost / lead | Max unit cost or ship date | Stock price vs process cost balance |
Write musts in measurable language: minimum yield, maximum mass, media list, temperature window, and the features that cannot move. Trade-offs stay secondary until musts pass. If a free-machining grade fails a must, remove it before tooling debates begin.
Chapter 3: Material Properties That Affect Machining
Properties explain why two grades with similar hardness can still cut differently. Use the map below to connect a property to a shop problem and a process response. Softness alone never guarantees easy machining, and equal hardness never guarantees the same tool and parameters.
3.1 Hardness and Strength
Higher hardness usually raises force and abrasive wear. Strength and work-hardening rate can hurt more than bulk hardness on stainless and some nickel alloys.
3.2 Thermal Conductivity and Heat at the Edge
Low-conductivity materials keep heat in the cutting zone. Titanium and many nickel alloys need heat management through engagement, coating, and coolant strategy rather than speed alone.
3.3 Work Hardening Tendency
Austenitic stainless and some nickel alloys harden under the tool. Rubbing passes and dull edges make the next cut worse. Prefer sharp edges, positive geometry where stable, and feeds that stay under the work-hardened layer.
3.4 Abrasiveness and Inclusions
Silica, carbides, and abrasive fillers shorten edge life. Cast structures and reinforced plastics often wear tools faster than their hardness number suggests.
3.5 Ductility, Stickiness and Built-Up Edge
Soft aluminum, copper, and some mild steels smear and form built-up edge. Polish, coating, and chip-breaker choice matter as much as speed.
3.6 Residual Stress and Distortion Risk
Plate, forging, and cast stock can move when stressed layers are removed. Plan roughing balance, stress relief, and finish allowances before blaming the cutter.
3.7 Microstructure and Heat-Treat Condition
Annealed, quenched and tempered, aged, or solution-treated conditions change chip form and wear. State condition next to grade on every traveler.
3.8 Property to Process Map
| Property | Machining effect | Observable problem | Process consideration |
|---|---|---|---|
| High hardness / strength | High force; abrasive wear | Chipping; slow metal removal | Rigid setup; suitable substrate; staged rough/finish |
| Low thermal conductivity | Heat stays at edge | Notching; thermal cracks; smear | Controlled engagement; coolant to edge; avoid rubbing |
| Work hardening | Hard layer under dull edge | Glazing; poor follow-on cuts | Sharp edge; adequate feed; minimize dwell |
| Abrasive phases / fillers | Rapid flank wear | Short life; size drift | Wear-resistant substrate/coating; shorter intervals |
| High ductility / stickiness | BUE; long chips | Torn finish; bird nests | Polish/coating; chip breaker; coolant strategy |
| Residual stress in stock | Distortion after cut | Out-of-flat; hole shift | Balanced material removal; stress relief; finish last |
| Heterogeneous microstructure | Interrupted micro-cuts | Edge micro-chipping | Edge prep; stable speed; inspect structure if critical |
Chapter 4: Material Grade, Condition and Stock Form
A grade name without standard and condition is incomplete. Stock form and previous processing change both function and machining risk. Confirm the fields below before you freeze tooling.
4.1 Grade Designation and Governing Standard
Call out the designation system (for example ASTM, EN, JIS, GB) with the grade. International near-equivalents stay unverified until chemistry and properties match.
4.2 Condition: Annealed, Tempered, Aged, Hardened
Condition often changes machinability more than the nominal grade family. Hardened stock may need a different process route than annealed stock of the same alloy.
4.3 Stock Form: Bar, Plate, Tube, Forging, Casting
Castings bring gates, inclusions, and skin. Forgings bring flow lines and residual stress. Plate can carry rolled stress. Match drill entry and first cuts to the actual surface.
4.4 Prior Processing and Surface Condition
Scale, decarb, cladding, and previous welds affect first-pass wear and finish. Note whether skin cuts are required before critical features.
4.5 Certifications and Traceability
Heat number, certs, and approved source rules belong on the PO and the traveler. Lost traceability can void an otherwise good machining result.
4.6 Near-Equivalents and Substitution Rules
Do not claim two near-grades are identical without verified chemistry, mechanicals, and condition. Substitution needs engineering sign-off and a new trial when function is critical.
4.7 Material Information Confirmation Table
| Field | What to confirm | Why it matters |
|---|---|---|
| Grade + standard | Full designation and governing spec | Avoids false equivalents |
| Condition / temper | Annealed, QT, aged, HRC range if used | Force, wear, and finish change with condition |
| Stock form | Bar, plate, tube, forging, casting | Stress, skin, and entry strategy |
| Size / blank | OD/ID, thickness, cut length | Removal volume and fixturing |
| Cert / heat | MTR, heat number, approval list | Traceability and audit |
| Prior process | Weld, clad, pre-machine, heat treat | Local hardness and distortion |
| Surface | Scale, coating, finish as received | First-tool wear and datum quality |
Chapter 5: Aluminum Alloys for CNC Machining
Aluminum is often labeled easy to machine, yet sticky chips, built-up edge, and thin-wall distortion still scrap parts. Start from function and temper, then choose carbide or PCD by volume, finish, and feature risk. Browse HENTRY material-to-tooling entry points on materials after you shortlist the alloy family.
5.1 Common Alloy Families and Tempers
2xxx, 6xxx, and 7xxx families differ in strength, corrosion, and chip behavior. Temper (for example T6 vs annealed) changes force and finish. Treat alloy plus temper as one selection, not alloy alone. Deep grade-vs-grade catalogs belong on sister pages; this hub keeps family-level logic.
5.2 Strength, Corrosion and Weight Drivers
Weight and specific strength pull aluminum into housings and structures. Corrosion needs and anodize plans can eliminate some high-strength options. Function still leads; cutting ease follows.
5.3 Chip Control and Built-Up Edge
Soft, gummy aluminum forms long chips and BUE on dull or wrong geometries. Sharp edges, suitable coatings or polish, and chip space in drills and end mills keep finish stable.
5.4 Thin Walls, Distortion and Fixturing
Low modulus means deflection under clamp and cut. Balance roughing, support thin walls, and leave finish passes after heat and stress settle.
5.5 Holemaking and Finish Features
Deep holes need chip evacuation and coolant strategy. Precision bores may need reaming after a controlled prep hole. Match drill point and reamer allowance to the temper you actually cut.
5.6 Carbide vs PCD for Aluminum
Solid carbide covers most prototypes and mixed jobs. PCD becomes attractive on suitable non-ferrous aluminum when abrasive wear on carbide, finish stability, or volume justifies the edge system. PCD stays optional for aluminum prints until volume and finish justify it. Confirm workpiece chemistry and feature type on your drawing before you lock the edge material.
5.7 Aluminum Family Comparison
| Focus | Function / state notes | Machining risks | Tooling direction |
|---|---|---|---|
| General 6xxx-type | Balanced strength/corrosion; temper matters | BUE; chip wrap on soft tempers | Sharp carbide; consider PCD on stable high-volume non-ferrous cuts |
| Higher-strength 7xxx-type | Strength and weight; corrosion trade-offs | Higher force; finish sensitivity | Rigid carbide setups; validate temper before PCD claims |
| Cast aluminum | Housing geometry; porosity possible | Abrasive silicon; interrupted cut | Wear-aware edges; inspect porosity on critical bores |
| Thin-wall structures | Weight-driven walls | Clamp distortion; chatter | Supportive fixturing; light finish engagement |
When two aluminum candidates both clear function, compare temper stability, chip behavior on your deepest hole, and whether volume justifies a PCD finish strategy. Keep the comparison inside one trial plan so finish and wear share the same heat and lot.
Chapter 6: Carbon Steel, Alloy Steel, Tool Steel and Cast Iron
Steels and irons cover a wide hardness and microstructure range. Grade name alone leaves difficulty unset. Condition, inclusions, and whether you cut before or after hardening decide the route.
6.1 Low-Carbon and Free-Machining Steels
Lower strength and free-machining additives can improve chips, yet they may conflict with weldability or fatigue needs. Confirm function before chasing free-machining grades.
6.2 Alloy Steels and Pre-Hardened Stocks
Alloy steels raise strength and wear resistance. Pre-hardened stock reduces later heat-treat distortion but increases cutting force. Plan holders and edge prep for the hardness you will actually cut.
6.3 Tool Steels
Tool steels often combine abrasive carbides with high hardness after heat treat. Soft annealed roughing and hard finishing are different jobs. Do not reuse soft-state parameters on hardened tool steel.
6.4 Cast Iron Types
Gray, ductile, and compacted graphite irons do not machine alike. Graphite can help chip breaking in some grades while abrasive matrix phases wear edges. Do not mix iron types in one risk assumption.
6.5 Heat Treatment Sequence
Cut soft then harden, or cut hard net-shape, based on distortion risk and feature accuracy. Secondary grinding or hard milling may follow. Sequence belongs in the material decision, not as an afterthought.
6.6 Hardened Steel Boundary
Once hardness enters the hardened regime, process and tooling change sharply. For hardened-steel process and tooling depth, use the hardened steel machining guide. This chapter only flags that hardened condition is a different selection problem.
6.7 Steels and Iron Comparison
| Category | Typical condition notes | Main risks | Tooling / process direction |
|---|---|---|---|
| Low-carbon / free-machining | Annealed or cold-drawn | BUE; function trade-offs | Carbide with chip control; verify service properties |
| Alloy steel | Annealed or pre-hard | Force; wear; distortion after QT | Carbide; plan heat-treat sequence |
| Tool steel | Annealed vs hardened | Abrasive carbides; chipping when hard | Soft rough / hard finish split; rigid setup |
| Gray cast iron | As-cast / stress relieved | Abrasive wear; dust; skin | Carbide; manage entry through skin |
| Ductile iron | As-cast | Tougher chips than gray | Stronger edge geometry; chip control |
Chapter 7: Stainless Steel
Stainless selection balances corrosion, strength, weldability, and magnetism against work hardening, heat, and poor chip control. Easy cutting rarely wins the criterion list alone.
7.1 Austenitic Grades
Common 300-series type grades work-harden and generate heat. Sharp tools, steady feed, and coolant to the edge matter. Avoid dwelling and rubbing passes.
7.2 Ferritic and Martensitic Grades
Ferritic grades often cut more calmly than austenitic ones but bring different corrosion and magnetic behavior. Martensitic grades may be cut annealed or hardened; hardness changes the entire tooling plan.
7.3 Duplex and Precipitation-Hardening Grades
Higher strength and dual-phase structures raise force and wear. Treat them as higher-risk than commodity austenitic stock unless trials say otherwise.
7.4 Corrosion and Fabrication Trade-Offs
Free-machining stainless variants can improve chips while reducing corrosion resistance or weld quality. Document whether corrosion or cut rate owns the decision.
7.5 Holemaking and Threading Risks
Deep holes pack chips and work-harden at the tip. Tapping blind holes needs chip evacuation and correct prep diameter. Select drill series by material behavior rather than by catalog habit; see carbide drill series by material when you reach series choice.
7.6 Surface Integrity
Smearing, residual stress, and heat tint can affect corrosion performance after machining. Finish and cleaning plans belong with the material choice for corrosive service.
7.7 Stainless Selection and Risk Checklist
| Check | Ask | If yes / risk |
|---|---|---|
| Corrosion class | Media and temperature defined? | Eliminate free-machining if corrosion owns |
| Strength / hardness | Annealed or strengthened condition? | Higher force; possible hard-cut route |
| Work hardening | Austenitic or duplex? | Sharp edge; no dwell; steady feed |
| Welding / magnetism | Fabrication constraints? | May remove some free-machining options |
| Deep holes / threads | Blind features? | Chip evacuation and prep critical |
| Finish / passivation | Surface integrity required? | Control smear and heat tint |
Chapter 8: Copper, Brass and Bronze
Copper-family materials appear in cooling, electrical, and bearing parts. Conductivity and corrosion needs often dominate. Machining behavior ranges from sticky pure copper to free-cutting brasses. Liquid-cooling plates, connectors, and bushings are examples of use cases rather than proof that every copper alloy machines the same.
8.1 Pure Copper and High-Conductivity Grades
Soft, sticky chips and built-up edge are common. Sharp polished geometries and controlled feeds help. Deburring and edge quality need explicit standards.
8.2 Brass
Many brasses chip more cleanly than pure copper. Lead-containing free-cutting grades machine differently from lead-free formulations required by regulation. Confirm chemistry against product rules.
8.3 Bronze and Bearing Alloys
Bearing bronzes may include abrasive phases. Wear on the tool and finish on the bore both matter. Validate reaming or boring allowances on the actual alloy.
8.4 Thermal and Electrical Function
Conductivity targets can forbid alloying choices that would otherwise cut easier. Keep function on the scorecard when comparing candidates.
8.5 Burrs, Finish and Softness
Soft alloys roll burrs and smear. Exit strategies, sharp tools, and defined deburr methods protect sealing and contact faces.
8.6 Coolant and Chip Handling
Chip control and cleanliness matter for electrical parts. Plan chip evacuation and wash-down with the material choice.
8.7 Copper-Family Comparison
| Family focus | Function notes | Machining focus | Tooling notes |
|---|---|---|---|
| High-conductivity copper | Thermal / electrical paths | Sticky chips; BUE; burrs | Sharp polished carbide; careful finish |
| Brass | Connectors; fittings | Often better chips; chemistry rules vary | Carbide; confirm lead-free constraints |
| Bronze / bearing | Wear surfaces | Abrasive phases possible | Wear-aware edges; bore finish control |
Chapter 9: Titanium and Nickel-Based Alloys
Titanium and nickel alloys combine high strength with heat concentration at the edge. Do not publish or copy universal high-speed parameters detached from grade, condition, tool, and operation. Industry practice and HENTRY tooling capability both stop at what your machine, holder, and trial can prove.
9.1 Why These Alloys Stress the Edge
Low thermal conductivity, high strength retention at temperature, and work hardening push heat into the tool. Notch wear and depth-of-cut line damage are common failure signatures.
9.2 Titanium Alloy Notes
Alpha-beta and other titanium families differ, but all need controlled engagement and secure workholding. Chemical reactivity with some tool materials at high temperature is a further constraint. Validate on the specific grade and condition.
9.3 Nickel-Based Alloy Notes
Inconel-type and similar alloys harden under the tool and abrade edges. Rigid setups, appropriate edge prep, and conservative engagement beat aggressive catalog claims.
9.4 Symptom to Check Path
Notch wear: check depth-of-cut line, coating, and entry strategy. Glazing: check dull edge and feed. Chatter: check stick-out and holder. Burned chips: check speed and coolant delivery. Each symptom points to a controlled change instead of a random speed cut alone.
9.5 Coolant and Engagement
Get coolant to the cutting edge. Reduce rubbing. Prefer paths that keep chip thickness predictable. Deep holes and pockets need staged strategies.
9.6 Ceramic and CBN: Principle Level Only
Ceramic and CBN can appear in hard or high-temperature alloy strategies in industry. HENTRY discusses them here at principle level only. Do not treat them as a confirmed HENTRY stocked solution for your print without a specific application review and trial plan.
9.7 Validation Before Volume
Lock grade, condition, tool substrate, geometry, coating, holder, coolant, and engagement together on a recorded trial. Uncertain capability statements defer to your drawing and trial validation.
If catalog starting values disagree with your first chips, change one variable at a time: engagement, edge prep, or coolant delivery. Log the change on the trial record. Guessing a new universal speed for the whole alloy family recreates the ranking mistake Chapter 1 warns against.
Chapter 10: Engineering Plastics and Reinforced Materials
Engineering plastics and reinforced grades need different fixturing, heat control, and inspection logic than metals. Do not copy metal feeds as HENTRY data for plastics. HENTRY guidance here is process-boundary level; it does not invent brand-specific tool life for polymer grades.
10.1 POM, PA, PEEK, PTFE and Related Plastics
Each polymer family brings different melting behavior, chip form, and moisture response. Identify the exact grade and filler before planning tools.
10.2 Unfilled vs Reinforced Grades
Glass or carbon reinforcement raises abrasive wear sharply. Unfilled grades may smear or melt at the edge instead. Treat reinforced stock as a separate wear problem.
10.3 Thermal Expansion, Moisture and Dimensional Stability
Plastics move with temperature and humidity. Measure critical sizes under agreed conditioning. Dry machining vs coolant choice can change both size and surface.
10.4 Clamping Deformation and Elastic Recovery
Soft materials deflect under clamps and spring back after the cut. Support the part and reduce clamp force on finished datums.
10.5 Heat, Burrs and Surface Quality
Heat softens the cut zone and raises burrs or whiskers. Sharp tools, adequate chip load, and limited rubbing help. Define acceptable edge quality on the print.
10.6 Abrasive Fillers and Tool Wear
Reinforced grades wear carbide quickly. Plan shorter change intervals and wear-resistant geometries. Do not extrapolate life from unfilled trials.
10.7 Process Controls for Reinforced Materials
| Focus | What to control | Why |
|---|---|---|
| Material state | Grade, filler %, moisture conditioning | Size and chip behavior shift |
| Fixturing | Support; low crush clamps | Elastic recovery and distortion |
| Heat | Sharp edge; chip load; coolant/air choice | Melt, smear, whiskers |
| Tooling | Geometry for abrasive fillers | Wear rate vs unfilled |
| Inspection | Conditioned measurement plan | Thermal/moisture drift |
Chapter 11: Match the Material to the Operation and Tooling
The same material can be calm in turning and hostile in deep drilling or finish reaming. Build the tooling plan from material behavior × operation × feature, not from a single favorite catalog page. Milling guidance here is supportive; HENTRY depth on this hub stays strongest on holemaking and related cutting tools.
11.1 Turning: Chip Breakers, Edge Strength and Cutting Forces
Match chip breaker and edge prep to ductile vs abrasive behavior. Interrupted turns need tougher edges. Continuous soft cuts need sharp geometries that resist BUE.
11.2 Milling: Engagement, Flute Design and Tool Reach
Engagement, flute count, and stick-out drive heat and chatter. Use milling to clear prismatic features; escalate specialty milling only when your machine and holder support the reach.
11.3 Drilling: Point Geometry, Coolant and Chip Evacuation
Point angle, flute volume, and coolant route decide whether chips leave the hole. Material family changes which drill series fits. Product-level carbide drill options start at the solid carbide drill page after the series logic is clear.
11.4 Boring and Reaming: Allowance, Stability and Finish
Boring corrects and enlarges under active control. Reaming finishes a prepared hole inside a narrow allowance window. For process order across drill, expand, ream, and bore, use the hole machining process route. Reamer product detail sits on the reamer tool page. On suitable non-ferrous aluminum finishes, PCD reaming may apply; see PCD reamer only when workpiece and feature fit.
11.5 Tapping and Thread Milling
Material ductility and chip packing decide tap style vs thread milling. Blind stainless and nickel-alloy holes need extra chip discipline.
11.6 Grooving, Parting and Deburring
Soft materials roll burrs; hard materials chip edges. Deburr method is part of the material decision when edges are functional.
11.7 Tool Materials, Coatings and Edge Preparation
Carbide covers most steels, stainless, cast irons, and difficult alloys on this hub. PCD focuses on suitable non-ferrous applications such as many aluminum jobs. Coatings and edge prep must match wear mode: abrasion, adhesion, or notch. Ceramic and CBN remain principle-level options pending application review.
11.8 Standard vs Custom Tooling
Standard tools win when features and volumes fit catalog envelopes. Custom step drills, combination tools, or special reamers pay when changeovers, stack-up, or unique features dominate. Decide after the Material × Operation × Feature matrix, not before.
| Material focus | Operation | Feature risk | Tooling direction |
|---|---|---|---|
| Aluminum (suitable non-ferrous) | Drill / ream | BUE; deep chip pack; finish bore | Sharp carbide drill; ream allowance; PCD reamer when justified |
| Aluminum | Turn / mill | Thin wall; smear | Sharp geometries; supportive fixturing |
| Carbon / alloy steel | Drill / turn | Wear; chip form by condition | Carbide substrate + coating matched to condition |
| Hardened steel | Hard mill / hard turn / special | Chipping; heat | Hard-cut route; see hardened-steel guide |
| Stainless | Deep drill / tap | Work hardening; heat | Sharp drill; coolant to tip; careful tap prep |
| Cast iron | Mill / drill | Abrasive wear; skin | Wear-resistant carbide; manage entry |
| Copper family | Finish bore | Burr; smear | Polished sharp edges; defined deburr |
| Ti / Ni alloys | Any heavy engagement | Notch; heat | Rigid carbide plan; trial-locked engagement |
| Reinforced plastic | Mill / drill | Abrasive filler wear | Wear-aware geometry; short intervals |
Read the matrix row for your material, then the column for the riskiest operation on the print. That cell sets the first tool family. Only after that cell is stable should you optimize secondary operations or discuss custom combination tools.
Chapter 12: Compare Materials by Total Manufacturing Cost
Stock price is only one line. Finished-part cost includes removal volume, cycle time, tool consumption, heat treatment, secondary operations, inspection, scrap, and lead time. This chapter compares material options A and B under equivalent function. For full cost-method detail, use the CNC machining cost guide.
12.1 Material Price vs Finished-Part Cost
A cheaper billet can lose if it doubles tool changes or scrap. Score both options on finished-part cost, not stickers alone.
12.2 Stock Utilization and Material Removal
Near-net stock or a different form can cut removal time more than a free-machining chemistry change.
12.3 Cycle Time and Tool Consumption
Record minutes per part and edges per shift on the same feature set for each candidate.
12.4 Heat Treatment and Secondary Operations
Hardening, stress relief, grinding, and coating change total cost and schedule. Include them when one candidate needs them and the other does not.
12.5 Inspection, Scrap and Rework
Unstable materials raise inspection load and scrap. A slightly slower stable process can win on accepted parts.
12.6 Availability, MOQ and Lead Time
Late stock erases unit-cost wins. Put lead time on the A/B sheet.
12.7 Material Option A/B Comparison
| Cost element | Option A | Option B | Notes |
|---|---|---|---|
| Stock price / blank | Same functional envelope | ||
| Removal volume / cycle time | Same critical features | ||
| Tool consumption | Edges per accepted lot | ||
| Heat treat / secondary | Include if required by option | ||
| Inspection / scrap / rework | Accepted-part basis | ||
| Lead time / MOQ | Schedule risk | ||
| Finished-part cost (summary) | Method detail on cost guide |
Chapter 13: A Practical Material Selection and Validation Workflow
Close the loop with a repeatable workflow and a trial record you can audit. The goal is a decision you can defend on the next lot rather than a one-off opinion.
13.1 Define Non-Negotiable Part Requirements
Lock musts from Chapter 2 before shortlisting grades.
13.2 Shortlist Candidate Grades and Conditions
Require standard, condition, and stock form on every candidate.
13.3 Review Geometry, Machine Capability and Tool Access
Deep features, thin walls, and holder limits remove options that look fine on paper.
13.4 Identify Material-Specific Machining Risks
Map work hardening, abrasion, heat, distortion, and chip risks by operation.
13.5 Select Initial Tooling and Trial Conditions
Pick substrate, geometry, coating, holder, coolant, and starting parameters as a set. Treat catalog numbers as trial openers only.
13.6 Measure Tool Wear, Quality and Cycle Time
Capture wear mode, size, finish, burrs, and minutes per part on the same run.
13.7 Compare Results and Record the Decision
Use the A/B cost sheet and the trial record together. State why the winner won.
13.8 Control Material Changes in Repeat Production
A new heat, temper, or substitute grade triggers re-validation when function is critical.
| Material Selection and Machining Trial Record | |
|---|---|
| Part / feature | |
| Grade + standard + condition | |
| Stock form / heat or lot | |
| Machine / holder / stick-out | |
| Tool (substrate, geometry, coating, ID) | |
| Coolant / delivery | |
| Parameters (Vc, fz, ap, ae, peck as used) | |
| Results: size / finish / burrs | |
| Tool wear mode / life note | |
| Cycle time / decision | |
Chapter 14: Worked Selection Examples
The examples below are illustrative decision arcs. They do not invent tool life percentages, prices, or guaranteed outcomes. Adapt each arc to your drawing and trial data.
14.1 Aluminum Housing: Comparing Candidate Alloys
Requirements: light weight, corrosion for indoor industrial use, pocketed housing with several precision bores. Candidates: common 6xxx-type temper vs higher-strength 7xxx-type temper vs a cast aluminum option. Function screen: cast may win complex outer shape but loses if porosity risks sealed bores; 7xxx may win strength but lose on corrosion or cost of temper control. Machining risks: BUE and thin-wall distortion on wrought; abrasive silicon and interrupted cuts on cast. Tooling and process: sharp carbide for pockets; controlled drill and ream allowance on bores; consider PCD reaming only on suitable non-ferrous wrought aluminum when volume and finish justify it. Validation: bore size and Ra after cool-down, flatness after unclamp, porosity check on cast lots.
14.2 Stainless Steel Fitting: Machinability vs Service Requirements
Requirements: corrosion in mild chemical splash, pressure fittings, internal threads. Candidates: austenitic commodity grade vs free-machining variant vs duplex if strength demands it. Function screen: free-machining may cut cleaner but can fail corrosion or weld rules; duplex raises strength with higher cutting risk. Machining risks: work hardening on deep drills and taps; heat at the edge. Tooling and process: sharp carbide drills with coolant to the tip, correct tap prep, avoid dwell. Validation: thread gauge after heat cycle if any, corrosion spot checks per spec, hole size stability across a tool change.
14.3 Precision Shaft: Steel Grade and Heat-Treatment Sequence
Requirements: journal accuracy, fatigue strength, wear on journals. Candidates: alloy steel cut soft then QT vs pre-hard stock finished hard. Function screen: soft-then-harden risks distortion on slender shafts; pre-hard reduces move but raises cutting force. Machining risks: residual stress move; hard-turn or grind need on journals. Tooling and process: carbide rough soft or carefully on pre-hard; plan hard finish route; link hardened work to the hardened-steel guide when hardness enters that regime. Validation: runout after heat treat, journal size capability, residual magnetism if relevant.
14.4 Copper Cooling Component: Conductivity, Burrs and Tooling
Requirements: high thermal conductivity, clean sealing faces, dense hole pattern for fluid. Candidates: high-conductivity copper vs a brass that cuts easier but conducts less. Function screen: if conductivity is non-negotiable, brass drops despite easier chips. Machining risks: sticky chips, BUE, exit burrs on soft copper. Tooling and process: sharp polished carbide, defined deburr, careful drill exit; finish strategy on sealing faces. Validation: leak or flatness on seals, burr standard at hole exits, conductivity or hardness spot check if substitution was debated.
14.5 Polymer Precision Part: Stability and Inspection Conditions
Requirements: electrical insulation, tight bore for a bearing insert, dry indoor service. Candidates: unfilled POM-type vs glass-reinforced PA-type. Function screen: reinforcement may raise stiffness but abrades tools and complicates size control with moisture. Machining risks: elastic recovery, heat smear, abrasive wear on reinforced grade. Tooling and process: sharp geometries, low crush fixturing, conditioned inspection plan; do not reuse metal parameters. Validation: bore size after agreed conditioning time, insert press fit trial, wear interval check on the first reinforced lot.
Across all five examples the pattern repeats: function screen first, machining risk second, tooling third, validation last. Swap any example material for your approved grade only after you rewrite the musts and re-run the trial fields. Illustrative arcs are templates rather than certificates.
Machinability and Material Selection FAQ
What is machinability in CNC machining?
Machinability is how a material behaves under a defined cutting operation and setup. It covers tool wear, forces, heat, chip control, surface finish, burrs, and dimensional stability. It is never a single universal ranking that applies to every process.
Why can machinability ratings mislead material selection?
Ratings usually reflect one test method, reference material, tool, and operation. Mixing numbers from different standards or conditions into one ranking hides those limits. Use ratings to shortlist, then confirm with shop observation and a recorded trial.
Is the easiest material to machine always the best choice?
No. Easy cutting does not equal suitability for the part. Corrosion, strength, temperature, weight, regulations, and supply can eliminate free-cutting options. Rank machinability only among candidates that already meet non-negotiable function.
Why do grade and condition both matter?
The same grade in annealed, tempered, aged, or hardened condition can cut and perform very differently. Stock form and prior processing add further risk. Always specify grade, governing standard, and condition together.
When does PCD make sense for aluminum?
PCD can fit suitable non-ferrous aluminum work when finish stability, abrasive wear on carbide, or production volume justifies the edge system. It stays optional until chemistry, feature type, and trial results support it. Confirm chemistry, feature type, and trial results on your drawing.
How should I compare material cost versus tooling cost?
Compare finished-part cost under equal function: stock, cycle time, tool consumption, heat treatment, secondary operations, inspection, scrap, and lead time. A cheaper material that raises scrap or tool changes can lose. Use a structured A/B sheet and a full cost method for the arithmetic.
What should an RFQ include for material and tooling together?
Send the drawing, grade with standard and condition, stock form, critical features and tolerances, surface targets, machine and holder data, coolant route, volume notes, and known failure modes. Mark unknowns clearly so tooling concepts match the real material state.
How do plastics and reinforced materials differ from metals in setup?
Plastics bring heat sensitivity, elastic recovery, moisture and thermal drift, and different chip behavior. Reinforced grades add abrasive wear. Use supportive fixturing, sharp tools, and conditioned inspection. Do not copy metal parameters as a default.
Send Your Drawing for Material and Tooling Review
When function, grade, condition, and feature risks are on the table, HENTRY can help align cutting tools with your material decision. Share the drawing and material state through the custom cutting tool RFQ.
