A print shows pocket walls, tight holes, and a surface callout, yet the team still argues whether to mill first or turn first. Material grade looks settled until hardness varies by batch. Feeds feel safe until a drill snaps and everyone only slows the spindle and adds coolant. Drawings arrive complete while the tooling RFQ still omits holder, coolant, and failure mode.
CNC machining uses programmed machine motion to remove material and produce finished features. Choose the process from the features you must make, then check how material condition, tolerance, surface finish, and tooling change cost and risk. Use this handbook to move from part requirements to process, material considerations, cutting tools, and inspection, then validate with a controlled trial before production tooling decisions.
A practical subtitle for this handbook: process selection, part quality, and machining cost belong in one decision path. HENTRY publishes this page as a tooling-focused hub. Sister articles hold deep drill, ream, breakage, and cost detail. Read the tables here, then follow each hard link once when you need depth.
Opening: Quick Answers and How to Use This Handbook
What is CNC machining? Programmed machine motion that removes material to produce finished features. Which process fits? The one that makes your critical features with acceptable risk on your machine family. How do material, tolerance, and tooling affect cost? They change stock removal, tool life risk, cycle time, scrap, and inspection load together. What should you prepare before selecting tools? Features, material condition, tolerances, surface targets, machine and holder data, coolant, volume, and known failure modes.

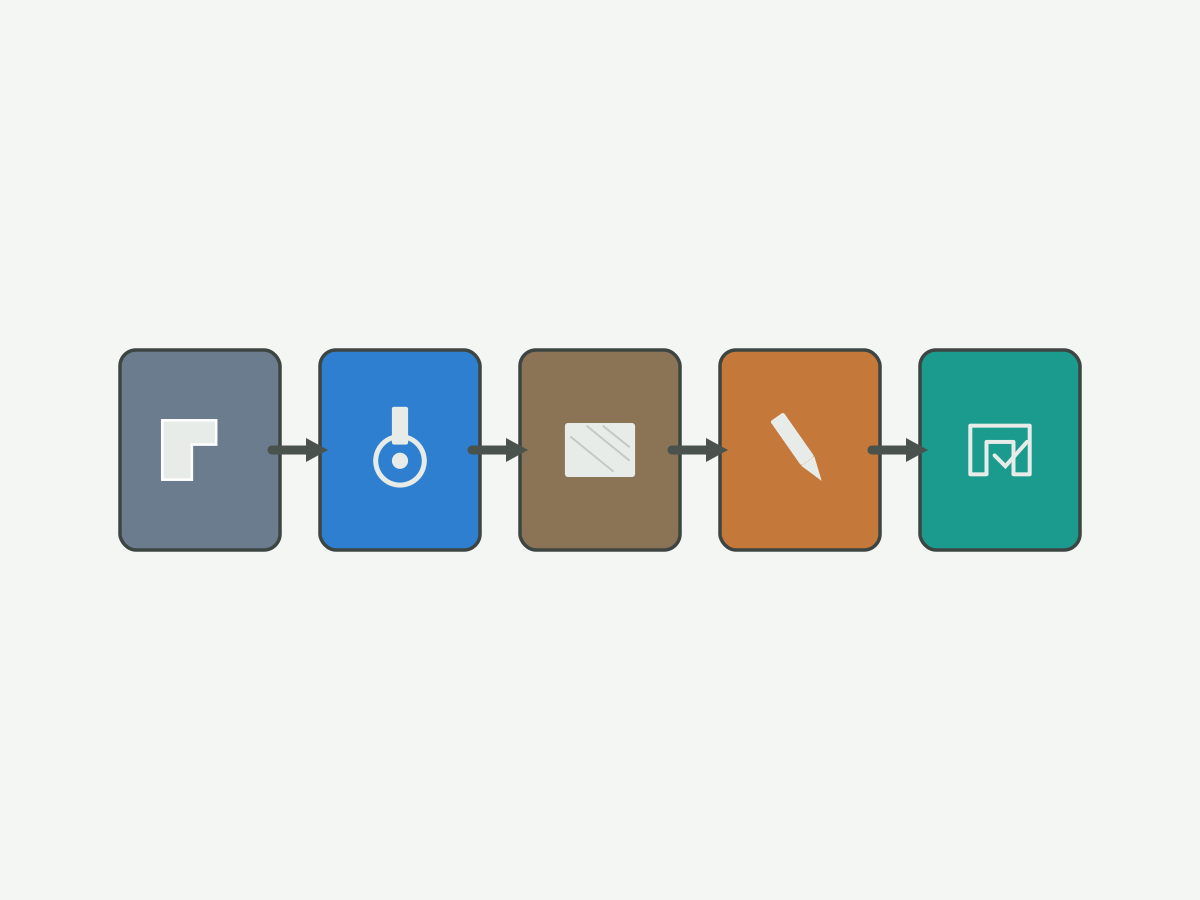

Use the decision table below as the spine of this handbook. Chapters then expand process, machines, materials, tolerances, design, tooling, parameters, troubleshooting, cost, applications, and validation. Appendices collect glossary terms, checklists, and formula notes on the same page.
| Part requirement | Process | Material considerations | Tooling | Inspection |
|---|---|---|---|---|
| Prismatic faces, pockets, slots | CNC milling (3-axis to 5-axis as reach demands) | Chip load, wall thinness, hardness | End mills, face mills, drills as needed | Flatness, position, Ra on critical faces |
| Diameters, shoulders, grooves | CNC turning / mill-turn | Bar stock condition, interrupt cuts | Turning inserts, grooving, boring bars | Diameter, runout, length |
| Initial holes | Drilling (then expand if needed) | Work hardening, chip packing | Solid carbide or HSS drills; point and coolant matched to depth | Diameter, position at entry |
| Precision finished holes | Boring and/or reaming after prep | Hardness vs edge prep; built-up edge risk | Boring heads; reamers (carbide or PCD where fitted) | Size, roundness, Ra, position as drawn |
| Internal threads | Tapping, thread milling, or thread turning | Chip control in blind holes | Taps, thread mills, threading inserts | Pitch diameter / gauge; depth |
| Fine finish or hard stock beyond cutters | Grinding, honing, or EDM when cutting limits hit | Hardened condition; conductivity for EDM | Abrasive or electrode process tools | As process capability requires |
Chapter 1: CNC Machining Fundamentals
1.1 What Is CNC Machining?
CNC means computer numerical control: a controller drives machine axes, spindle, and auxiliary functions from a program. Cutting still happens at the tool-workpiece interface. CNC is the control method. Milling, turning, drilling, and related operations are the cutting processes that run under that control.
Do not treat every CNC machine as a metal-cutting mill. Lathes, Swiss-types, grinders, and EDM units also run under CNC. This handbook focuses on subtractive cutting for discrete parts, with brief notes when grinding, honing, or EDM become the practical next step.
1.2 How CNC Machining Works: From CAD Model to Finished Part
A typical path runs CAD model to process plan to CAM toolpaths to post-processed code to setup and cutting to inspection. Each step can inject error: wrong datum, wrong stock model, wrong holder projection, or an unchecked first-article result. Plan inspection criteria before the first chip falls.
1.3 CAD, CAM, G-Code and Machine Execution
CAD defines geometry. CAM plans tools, stepovers, and feeds. The post processor writes machine-specific code. The control executes motion within machine limits. Programmers and operators share responsibility for stick-out, coolant, and work offsets. A perfect toolpath still fails if the physical setup drifts.
1.4 CNC Machining vs. Manual Machining
Manual machines rely on operator skill for each pass. CNC repeats programmed motion with consistent offsets once proven. Manual work still helps prototypes, one-offs, and recovery. Production volumes and tight repeatability usually favor CNC once fixtures and tools are proven.
1.5 Advantages, Limitations and Suitable Applications
Advantages include repeatable geometry, multi-axis reach, and documented programs. Limitations include setup cost, programming time, and the need for rigid tooling and holders. Suitable work covers prototypes through high volume when fixtures and tool life support the takt. Unsuitable work includes features that demand processes outside the machine family without a planned secondary operation.
1.6 Prototypes, Small Batches and Production Runs
Prototypes may accept soft jaws and shorter tool life. Small batches need fast changeover. Production runs need stable holders, coolant strategy, and change-out rules. Tooling decisions should scale with volume: a custom combination tool can pay off when changeovers and stack-up dominate unit cost.
Chapter 2: CNC Machining Processes and When to Use Them
Pick processes from features. Machine marketing names do not decide the route. The comparison table below is a first screen. Deep hole-route detail lives on sister pages linked once each.
| Process | Typical features | Usually needs before | Quality targets | Limits |
|---|---|---|---|---|
| CNC milling | Faces, slots, pockets, contours | Stock prep; datums | Flatness, position, finish | Reach, thin walls, deep pockets |
| CNC turning | OD/ID, shoulders, grooves | Bar or blank readiness | Diameter, runout | Non-round prismatic work without live tooling |
| Drilling | Initial holes | Entry face condition | Start size and position | Deep L/D, hard interrupt exits |
| Boring | Corrected / enlarged holes | Pilot or cast hole | Position, size under control | Cycle time; bar rigidity |
| Reaming | Finished size and finish | Prepared hole in window | Size, roundness, Ra | Cannot fix large position error |
| Threading | Internal / external threads | Correct minor/major prep | Pitch diameter, depth | Chip in blind holes; thin walls |
2.1 CNC Milling: Faces, Slots, Pockets and Contours
Milling removes stock with rotating multi-flute tools while the table or spindle moves. Use it for prismatic geometry and complex 3D contours. Pocket depth, corner radii, and tool reach drive tool diameter and stick-out. Chip evacuation and wall support decide whether a deep pocket needs staged tools.
2.2 CNC Turning: Diameters, Shoulders, Grooves and Profiles
Turning spins the workpiece against a stationary or driven tool. It fits rotational parts and many hydraulic or shaft features. Live tooling adds milling and drilling on the same spindle axis family. Interrupted cuts and slender parts need careful support and speeds.
2.3 Drilling: Creating the Initial Hole
Drilling creates the starting hole. Point geometry, flute design, and coolant decide chip exit and wander. For process order across drill, expand, ream, and bore, use the sister guide on hole machining process selection. This handbook only states that drilling does not finish every precision hole alone.
2.4 Boring and Reaming: Finishing and Correcting Holes
Boring actively controls diameter and can correct position when the bar and setup allow. Reaming finishes a hole that already sits inside a narrow stock and alignment window for size, roundness, and surface. Compare routes on reaming vs boring. For what reaming changes on a prepared bore, see what reaming changes. Neither process replaces the other.
2.5 Tapping, Thread Milling and Thread Turning
Tapping is fast in suitable holes when chip and depth are controlled. Thread milling offers flexibility on large or expensive parts and on hard materials. Thread turning fits rotating work. Choose from material, hole type, volume, and gauge method.
2.6 Grooving, Parting-Off, Chamfering and Deburring
Grooving and parting need rigid blades and chip control. Chamfers protect edges and help assembly. Deburring may be manual, brush, or dedicated tools. Edge quality belongs in the process plan when burrs fail leak or fatigue tests.
2.7 When Grinding, Honing or EDM May Be Needed
Hardened stock, ultra-fine finish, or features beyond cutter reach may need abrasive or EDM processes. Plan those steps early so upstream CNC leaves correct stock and datums.
2.8 Combining Operations into a Practical Process Plan
Sequence roughing before finishing, establish datums early, and avoid stacking operations that fight each other. Combination tools can reduce changeovers when volume and geometry justify them. Keep a written plan that names tools, holders, and inspection gates.
Chapter 3: CNC Machine Types, Setups and Workholding
| Part features | Machine configuration often considered | Watch-outs |
|---|---|---|
| 3-face prismatic; shallow pockets | 3-axis mill | Multiple setups for other faces |
| Multi-face access; angled holes | Indexed or simultaneous 5-axis | 5-axis is not automatically more accurate |
| Rotational primary geometry | CNC lathe / turning center | Live tooling limits and clearance |
| Mixed turn + mill features | Mill-turn | Programming and collision checks |
| Small slender bar parts | Swiss-type | Guide bushing and tooling package fit |
3.1 Three-Axis, Indexed Five-Axis and Simultaneous Five-Axis Machining
Three-axis covers many prismatic jobs. Indexed five-axis reduces setups by rotating the part between 3-axis cuts. Simultaneous five-axis keeps tool orientation continuous for complex surfaces. More axes add programming and collision risk. Choose them when feature access or surface quality needs them. A brochure feature list alone is not enough.
3.2 CNC Lathes, Turning Centers and Mill-Turn Machines
Lathes and turning centers focus on rotational work. Mill-turn combines both on one platform when transfer error between machines hurts stack-up. Validate tool clearance and spindle power for the heaviest cut in the mix.
3.3 Swiss-Type Machining for Small and Slender Parts
Swiss-types support the bar near the cut for slender diameters. They fit medical and small precision parts when the tooling package matches. Not every small part needs Swiss; check length-to-diameter and production volume.
3.4 Choosing Datums and Planning Setups
Datums should match functional surfaces and inspection. Each reclamp risks stack-up. Plan setups so critical relationships stay in one clamp when possible.
3.5 Workholding, Clamping Forces and Part Distortion
Clamp hard enough to resist cutting forces, soft enough to avoid spring-back distortion. Thin walls and soft alloys need distributed support. Soft jaws and custom fixtures pay off when scrap from distortion dominates.
3.6 Spindle Capability, Tool Reach and Machine Rigidity
Spindle speed, torque, and taper class limit tool diameter and stick-out. Long reach multiplies deflection. For stick-out, runout, and holder choices on carbide drills, see the sister notes on holder rigidity when you leave this hub. Keep projection as short as the feature allows.
Chapter 4: Materials for CNC Machining
Material choice starts from function, then machinability and cost. The table below is a family screen with tooling implications. It is not a materials database.
| Material family | Machining challenges | Tooling considerations | Chip and coolant notes |
|---|---|---|---|
| Aluminum (e.g. 6061, 7075) | Built-up edge; soft smear; exit burrs | Sharp edges; polished flutes; PCD where volume and finish justify | High feed possible; clear chips; watch coolant for smear |
| Carbon / alloy steels | Heat; work hardening in some grades | Carbide with suitable coating; edge prep for interrupted cuts | Chip breaking; flood or through-coolant by depth |
| Stainless (e.g. 304, 316) | Work hardening; heat at edge | Positive geometry; stable feed; avoid dwell | Continuous chip risk; coolant to the cut |
| Cast iron | Abrasive dust; edge wear | Wear-resistant carbide; dust control | Short chips; manage dust and coolant filtration |
| Copper alloys | Smear; built-up edge | Sharp tools; polished surfaces | Chip control varies by alloy |
| Titanium and nickel alloys | Heat; low conductivity; notch wear | Conservative parameters; strong edge; short stick-out | Coolant strategy critical; avoid rubbing |
| Engineering plastics | Melting; burrs; dimensional creep | Sharp high-rake tools; chill if needed | Often lower speed heat management |
| Hardened steels | High edge load; chipping risk | Hard-cut geometry; see hardened guide | Stable machine and holder required |
4.1 How to Select a Material: Function, Machinability and Cost
Function (strength, corrosion, weight) comes first. Machinability and batch cost follow. Changing grade late can obsolete tools and programs. Involve manufacturing early when tolerance and material fight each other.
4.2-4.8 Family Notes
Aluminum cuts freely but can smear and burr. Steels need heat and chip control. Stainless work-hardens if the edge rubs. Cast iron is abrasive. Copper alloys smear. Titanium and nickel demand heat management and rigidity. Plastics melt or creep under heat and clamp load. Treat listed grades as examples only.
4.9 Material Condition, Hardness and Batch Variation
Annealed vs hardened condition can change tool family. Hardness variation across a batch can explain sudden wear. Measure or certify condition when tools fail without program changes. For hardened steel process and tooling depth, follow the machining hardened steel guide. This hub only flags hardness as a first-order input.
Chapter 5: Tolerances, Fits and Surface Finish
| Drawing requirement | Main drivers | Likely operations | Inspection |
|---|---|---|---|
| Loose general tolerance | Process capability of rough/finish mill or turn | Standard finishing passes | Calipers / basic CMM sample |
| Tight diameter on hole | Prep hole quality; tool size; heat | Bore and/or ream | Air gauge, bore mic, or CMM as specified |
| Position / true position | Datum scheme; setup; machine geometry | Single setup preferred; boring for correction | CMM / positional check |
| Fine Ra on bore or face | Edge condition; speed; coolant; material | Finish pass; ream; grind if needed | Profilometer with correct cutoff |
| Fit class (hole/shaft) | Both members and inspection method | Match process to fit band | Gauge or measured size per standard |
5.1 Accuracy, Precision and Repeatability
Accuracy is closeness to target. Precision is scatter among repeats. Repeatability is day-to-day stability under the same setup. A process can be precise yet off-target if offsets drift.
5.2 Dimensional Tolerances and Functional Requirements
Tighten only what function needs. Every tighter band can add time, tools, and scrap. Tie each critical dimension to a functional reason on the drawing review.
5.3 Fits for Holes and Shafts
Fit classes couple hole and shaft tolerances. Process both members with the same inspection language. Do not invent a universal H7 promise for every diameter and material.
5.4 GD&T Fundamentals: Datums, Position, Flatness and Runout
Datums define the reference frame. Position, flatness, and runout control relationships that plus/minus size alone miss. Setup planning should mirror the datum frame.
5.5 Surface Roughness: Ra, Rz and Measurement Context
Ra and Rz describe different aspects of texture. Measurement direction, cutoff, and filter change the number. Match the callout to a process that can hold it and to a gauge that measures it the same way as the customer.
5.6 How Material, Geometry and Setup Affect Achievable Results
Hard materials, long stick-out, and thin walls shrink the window. Machine and holder condition matter as much as the nominal tool grade.
5.7 Why Tighter Tolerances Increase Manufacturing Effort
Tighter bands usually need slower finishes, more stable tools, more frequent checks, and sometimes secondary processes. Cost rises nonlinearly near capability limits.
5.8 Matching Inspection Methods to Drawing Requirements
Pick gauges that can resolve the tolerance with enough discrimination. Air gauges, bore mics, and CMMs answer different questions. Write the method into the plan so shop and customer measure alike. HENTRY does not publish a blanket guaranteed tolerance table detached from material, size, process, and inspection.
Chapter 6: Design for CNC Machining
Design choices change tool access, stick-out, chip escape, and cost. Use the checklist ideas below at drawing review. For a full standalone treatment of holes, threads, pockets, thin walls and tolerances, see the design for CNC machining guide; this chapter stays at handbook depth.
6.1 Tool Access and Internal Corner Radii
Internal corners need a radius the tool can cut. Sharp internal corners force EDM or special tools. Larger radii allow larger, stiffer mills and shorter cycles.
6.2 Pocket Depth, Tool Reach and Chip Evacuation
Deep pockets need long tools or staged diameters. Chips must leave the cut. Add relief, open walls, or intermediate exits when chips pack.
6.3 Thin Walls, Slender Features and Distortion
Thin walls vibrate and deflect. Support them in the fixture plan or thicken nonfunctional areas. Distortion after unclamping is a design and workholding problem together.
6.4 Hole Sizes, Depths and Entry Conditions
Standardize hole sizes when function allows. Deep holes need chip and coolant strategy. Entry on uneven or angled faces raises wander risk and may need spot faces or pilots.
6.5 Blind Holes, Cross-Holes and Breakthrough Features
Blind holes trap chips. Cross-holes create interrupt exits that chip tools. Breakthrough on thin walls can raise burrs. Call these features out for tooling review early.
6.6 Thread Depth, Runout Space and Tool Clearance
Threads need runout or relief for taps and thread mills. Incomplete threads at the bottom of blind holes are normal; design engagement length with that in mind.
6.7 Undercuts, Small Features and Tool Limitations
Undercuts need special tooling or secondary setups. Micro features may exceed practical cutter size. Flag tool-limited geometry before the RFQ so manufacturing can propose alternates.
Chapter 7: Cutting Tool Selection for CNC Machining
HENTRY approaches this chapter as a cutting-tool manufacturer path: match family to feature and material, then validate. The matrix is a decision aid. It is not a catalog dump.
| Material family | Operation | Feature example | First tool family to consider | When it may not fit |
|---|---|---|---|---|
| Aluminum | Mill | Pocket / wall | Carbide end mill; high helix | Welded BUE with dull edges |
| Aluminum | Drill / ream | Precision bore | Carbide drill; PCD reamer when volume/finish fit | Wrong prep hole stock for reamer |
| Steel | Drill | Through / blind hole | Solid carbide drill with suitable point/coating | Extreme L/D without peck/through-coolant plan |
| Stainless | Drill | Hole in 300-series | Carbide drill; stable feed; sharp geometry | Dwell and rubbing that work-harden |
| Hardened steel | Mill / drill | Hard pocket or hole | Hard-cut carbide strategy per hardened guide | Soft-steel tool geometry on hard stock |
| Any | Finish hole | Tight size + Ra | Reamer or boring head by position need | Using reamer to fix large position error |
| Any | Thread | Internal thread | Tap, thread mill, or turning insert by context | Ignoring chip in deep blind holes |
| Any | Groove / part | OD groove | Grooving / parting insert system | Excess stick-out on thin blades |
Tool Families
Common families include drills, end mills, reamers, boring tools, threading tools, and grooving or parting tools. Inserts suit indexable bodies; solid carbide suits small diameters and many drills and mills. Choose inserts vs solid from diameter, cost of edge, and stiffness needs.
Matching Tool Type to Feature and Material
Start from the feature and material row in the matrix, then refine geometry. For CNC drill selection depth, see choosing carbide drills for CNC. For type taxonomy, see drill bit types for metal. For precision holemaking as a selection hub, see the precision holemaking selection guide.
Carbide, HSS/HSS-Co, PCD and When Each Fits
Carbide covers most CNC metal cutting at production speeds. HSS or HSS-Co still appears in some taps and low-speed or delicate setups. PCD fits abrasive nonferrous finishing and high-volume aluminum hole finishing when the process window fits. Do not force PCD onto steel cutting. Soft product links for standard lines include a solid carbide drill, a reamer tool, and related end-mill families when the feature is milling-led.
Geometry, Edge Preparation and Coatings
Rake, helix, point angle, and hone change chip form and edge strength. Coatings reduce wear in specific material groups. Treat coating charts as starting guidance. Validate on the job.
Toolholders, Runout, Overhang and Balance
Holder type and projection often dominate hole quality more than a small grade change. Keep overhang short. Measure runout at the tool tip when tolerances are tight.
Standard, Custom and Combination Tools
Use standard tools when the print allows. Move to modified-standard or full custom when steps, chamfers, or length force a dedicated form. Combination drill-reamers and similar tools can cut changeovers when volume and capability align. Send prints for review before assuming a catalog number exists.
Chapter 8: Cutting Parameters, Coolant and Chip Control
Parameters connect spindle speed, feed, and engagement to chip thickness and heat. Coolant and chip evacuation keep the edge alive. This chapter gives formulas, unit notes, and one worked example. It does not publish a universal HENTRY feeds-and-speeds table for all materials.
Formula quick reference
| Quantity | Metric relation | Imperial relation |
|---|---|---|
| Cutting speed Vc | Vc (m/min) = π × D(mm) × n(rpm) / 1000 | SFM ≈ π × D(in) × rpm / 12 |
| Spindle speed n | n = Vc × 1000 / (π × D) | rpm = SFM × 12 / (π × D) |
| Feed rate vf | vf (mm/min) = fz × z × n | ipm = ipt × flutes × rpm |
| Drill feed | Often mm/rev × rpm | Often ipr × rpm |
Worked example (illustrative calculation; openers only). Suppose a 10 mm carbide drill and a starting Vc of 80 m/min in a free-cutting steel trial: n ≈ 80 × 1000 / (π × 10) ≈ 2546 rpm. If the trial feed is 0.15 mm/rev, vf ≈ 0.15 × 2546 ≈ 382 mm/min. Treat these as calculated openers only. Change them when chips, sound, wear, and measured holes disagree.
8.1-8.4 Speed, Feed and Milling Engagement
Cutting speed sets surface speed at the edge. Feed per tooth or per revolution sets chip thickness. In milling, axial and radial engagement change load. Roughing favors stock removal with acceptable tool risk. Semi-finish and finish reduce engagement and often speed or feed to hit size and Ra.
8.5 Chip Control
Chip shape tells you about feed, geometry, and material. Long stringy chips can wrap. Powdered chips in cast iron need dust control. Packed flutes in deep holes raise torque and breakage risk.
8.6 Coolant: Flood, Through-Tool, MQL and Dry
Flood suits many open cuts. Through-tool coolant helps deep holes and chip flush. MQL reduces fluid volume when the process window allows. Dry cutting needs a process that can shed heat without fluid. Pick the route from depth, material, and machine capability, then confirm on trial.
8.7 Starting Parameters vs Production Settings
Catalog and calculator values are calculated starting points. For carbide drill windows and deeper parameter discussion, use carbide drill speeds and feeds. Lock production only after validation on your machine, holder, coolant, and material batch.
8.8 Calculated vs Validated Parameters
Calculated means formula or catalog based. Validated means proven on the job with measured results and stable wear. Crossing that boundary without a trial is a common cause of scrap and broken tools.
Chapter 9: Common CNC Machining Problems and Troubleshooting
Work each symptom with a check order. Avoid the empty habit of only changing the tool, slowing the spindle, and adding coolant without diagnosis.
| Symptom | Checks (order) | Possible causes | Corrective action | Verification |
|---|---|---|---|---|
| Premature wear / edge chipping | 1 Material condition 2 Runout 3 Speed/feed vs chip 4 Coolant to edge 5 Edge prep vs interrupt | Wrong grade/geometry; rubbing; interrupt shock; hard inclusions | Correct parameters; improve rigidity; adjust hone/coating; stabilize entry | Wear land photo/measure after fixed time; hole quality |
| Drill or end mill breakage | 1 Stick-out 2 Chip packing 3 Peck/coolant 4 Entry/exit interrupts 5 Programmed load | Excess overhang; packed flutes; mis-drill on cross-hole; collision | Shorten projection; clear chips; revise entry; see breakage guide | No repeat break on controlled trial; torque trend |
| Chatter / vibration | 1 Stick-out 2 Holder 3 Engagement 4 Speed sweet spot 5 Workholding | Long tool; weak fixture; unstable radial width | Shorten tool; change engagement; retune rpm; stiffen clamp | Surface marks gone; stable sound |
| Built-up edge / adhesion | 1 Edge sharpness 2 Speed 3 Coolant 4 Material smear tendency | Dull edge; wrong speed; poor lubrication on aluminum/copper | Sharper geometry; adjust Vc; improve coolant; polish flutes | Clean edge after cut; finish improves |
| Burrs / edge damage | 1 Exit support 2 Feed at exit 3 Tool wear 4 Deburr plan | Exit breakout; dull tool; missing chamfer pass | Support exit; freshen tool; add controlled deburr | Edge pass gauge / visual standard |
| Oversize / taper / out-of-round hole | 1 Tip runout 2 Prep hole 3 Wear 4 Thermal growth 5 Reamer/bore setup | Runout; wrong stock for reamer; worn margins; heat | Fix holder; correct prep; refresh tool; stabilize temp | Air gauge / roundness check |
| Poor surface finish | 1 Edge condition 2 Feed marks 3 Vibration 4 Coolant | Dull tool; too heavy finish feed; chatter | Finish pass tune; new edge; kill chatter | Ra/Rz within callout method |
| Dimensional drift in production | 1 Tool wear trend 2 Offset discipline 3 Temp 4 Batch hardness | Wear; unchecked offsets; thermal; material variation | Wear limits; SPC checks; cool-down rules; certify stock | Control chart stability |
9.1-9.2 Wear, Chipping and Breakage
Separate abrasive wear from chipping and from sudden breakage. Breakage often traces to chip packing, overhang, or interrupt exits. For solid carbide drill breakage checks, follow solid carbide drill breakage checks. This hub keeps the ordered checklist only.
9.3-9.5 Chatter, BUE and Burrs
Chatter is a system problem: tool, holder, part, and engagement. Built-up edge is common on sticky alloys with dull edges. Burrs need exit control and a planned deburr step when function demands it.
9.6-9.8 Hole Geometry and Drift
Oversize and taper often start with runout or wrong prep stock for a reamer. Drift over a shift points to wear limits and thermal discipline. Document changes so the next shift does not chase ghosts.
Chapter 10: CNC Machining Cost and Productivity
Unit cost is not only cycle time. Material, programming, fixtures, tools, scrap, rework, and inspection all sit in the stack. The sketch below is a calculation layout for discussion. It is not a savings guarantee.
| Cost element | What to capture | Notes |
|---|---|---|
| Material | Blank cost + yield loss | Include remnant and drop |
| Machine time | Cycle × burden rate | Include non-cut time if it dominates |
| Setup / changeover | Hours amortized per batch | Custom fixtures vs soft jaws |
| Cutting tools | Edge cost / accepted pieces | Include index and offline preset |
| Scrap / rework | Rate × unit cost | Often larger than edge cost |
| Inspection | Time × rate + gauge cost share | Rises with tolerance |
Tool purchase price can look high while cost per accepted piece falls when scrap and changeovers drop. For a hole-focused cost framework you can adapt, see cost per accepted hole. Apply the same accepted-piece logic to drills and mills without copying PCD-specific claims into every job.
10.1-10.7 Productivity Levers
Drivers include material removal rate, number of setups, tool life to a wear limit, and first-pass yield. Custom or combination tools become economical when they remove changeovers or stack-up that scrap would otherwise create. Cut cost without deleting necessary quality: remove nonfunctional tolerance and unnecessary finishes first.
Chapter 11: Application Examples Across Industries
Examples below are illustrative patterns for handbook use. They are not customer case studies and carry no invented volumes or life claims.
| Sector (illustrative) | Typical part | Material | Critical features | Process sketch | Tooling focus | Inspection focus |
|---|---|---|---|---|---|---|
| Automotive / EV | Housing / bracket | Aluminum | Holes, pockets, sealing faces | Mill + drill + ream | Carbide mills/drills; PCD finish where fitted | Flatness, hole size, position |
| Mold and die | Cavity insert | Tool steel (often hard) | Contours, vents, holes | Hard mill; drill; EDM as needed | Hard-cut tools; short stick-out | Profile, hardness, finish |
| Aerospace | Structural fitting | Al / Ti / Ni family | Pockets, holes, thin walls | Mill-heavy; careful drill | Rigid setups; heat control | Position, wall thickness |
| Medical / small precision | Small component | Stainless / Ti | Small holes, threads | Swiss or small mill-turn | Micro tools; process capability | Size, surface, cleanliness specs |
| Hydraulic | Manifold | Aluminum / steel | Cross-holes, ports, seals | Gun-drill or carbide drill plan; ream/bore | Deep-hole strategy; burr control | Port size, intersect quality |
| Robotics / semiconductor / cooling | Cold plate / frame | Aluminum / copper | Channels, flatness, holes | Mill + drill; careful finish | Chip clear; smear control | Flatness, leak-related edges |
Chapter 12: From Drawing to Validated Tooling
Close the loop from print to proven tools before you freeze production settings.
- Confirm material grade and condition against function and machinability.
- List critical features, tolerances, and current scrap or failure modes.
- Record machine, taper, holder, stick-out limits, and coolant route.
- Select initial tool families from the Chapter 7 matrix and sister guides.
- Run a controlled trial with written parameters and chip/wear notes.
- Set acceptance limits and tool-change rules from measured results.
- Package a tooling RFQ with the checklist fields below.
For sample trial structure on the HENTRY path, see the sample validation process. Pair that with the precision holemaking selection guide when holes dominate the print.
Tooling RFQ checklist (Appendix G)
| Field | Minimum useful detail |
|---|---|
| Drawing / model | Current revision; critical views |
| Material | Grade, condition, hardness if known |
| Critical dimensions | Sizes, tolerances, GD&T notes |
| Surface | Ra/Rz and measurement notes |
| Machine | Type, taper, speed/torque class if known |
| Holder / stick-out | Holder type; max projection |
| Coolant | Flood, through-tool, MQL, or dry |
| Volume / takt | Batch size or rate notes |
| Current problem | Breakage, oversize, burr, chatter, cost |
| Unknowns | Mark clearly; do not guess |
Appendix A: CNC Machining Glossary (selected)
| Term | Short definition |
|---|---|
| CNC | Computer numerical control of machine motion |
| CAM | Software that plans toolpaths from CAD |
| Stick-out | Tool projection beyond the holder face |
| Runout | Tip orbit error that enlarges or mis-shapes cuts |
| Vc | Cutting speed at the tool edge |
| fz / ipt | Feed per tooth |
| Ra / Rz | Common roughness parameters |
| GD&T | Geometric dimensioning and tolerancing |
| BUE | Built-up edge on the cutting edge |
| Through-coolant | Fluid delivered through the tool |
| Peck drilling | Interrupted drill advance to clear chips |
| Reaming | Finishing a prepared hole for size and finish |
| Boring | Single-point or head-based hole sizing/positioning |
| Validated parameters | Settings proven on the actual job |
| Cost per accepted piece | Total relevant cost divided by good output |
Appendices B and C map to the process comparison in Chapter 2 and the material table in Chapter 4. Appendix D formulas appear in Chapter 8. Appendix E design checks appear in Chapter 6. Appendix F trial fields mirror the Chapter 9 verification column and Chapter 12 trial steps. A downloadable handbook PDF may follow in a separate project. This page does not invent a PDF URL.
CNC Machining Handbook FAQ
What is CNC machining?
CNC machining uses programmed machine motion to remove material and produce finished features on a workpiece. The control system drives axes, spindle, and tool paths from CAM or hand-written code. Process choice, material condition, tolerance, and tooling still decide cost and risk on every job.
How do I choose between CNC milling and CNC turning?
Choose milling when faces, pockets, slots, and prismatic contours dominate. Choose turning when diameters, shoulders, grooves, and rotational profiles dominate. Mill-turn or multiple setups fit parts that need both. Start from the critical features and datums, then pick the machine family that holds those features with the fewest risky transfers.
How do tolerances and surface finish affect machining cost?
Tighter tolerances and finer finishes usually add setups, slower finishing passes, specialty tools, and more inspection. Cost rises when the drawing asks for capability the process cannot hold stably. Match each critical callout to a process and inspection method before you freeze the print.
How should I select cutting tools for a new CNC job?
Match material family, operation, and feature geometry to a tool family, then set substrate, geometry, coating, holder, and overhang. Prefer the shortest rigid tool that still reaches. Validate on a controlled trial before you treat catalog starting values as production settings.
What is the difference between calculated and validated cutting parameters?
Calculated parameters come from formulas or catalog starting points for diameter, material, and tool type. Validated parameters are confirmed on your machine, holder, coolant, and workpiece for that job. Use calculated values only to open the first trial. Lock production settings after measured results pass.
What information should I send for a tooling RFQ?
Send the drawing, material grade and condition, critical dimensions and tolerances, surface requirements, machine and holder data, coolant route, volume or takt notes, and the current scrap or failure mode. Mark unknowns clearly. Incomplete fields come back as questions before a concept is quoted.
When should I choose reaming, and when should I choose boring?
Reaming finishes a prepared hole for size, roundness, and surface finish when stock and alignment are within the reamer window. Boring corrects position and can remove more stock when the hole must be located or enlarged under active control. They solve different problems and do not replace each other.
Send Your Drawing for Tooling Review
When features, material, machine data, and failure modes are ready, HENTRY reviews tooling concepts against your print. Attach the RFQ checklist fields and any trial notes you already have.
