PCD Inserts for Nonferrous Turning
Review PCD turning insert geometry and provide the material, cut conditions, and holder details needed to assess your application.
PCD inserts · nonferrous turning
PCD Inserts for Nonferrous Turning
Review PCD turning insert geometry and provide the material, cut conditions, and holder details needed to assess your application.
- Confirm PCD tip structure — not every diamond keyword is the same
- Check holder pocket before locking a PCD option
- Separate continuous vs interrupted duties

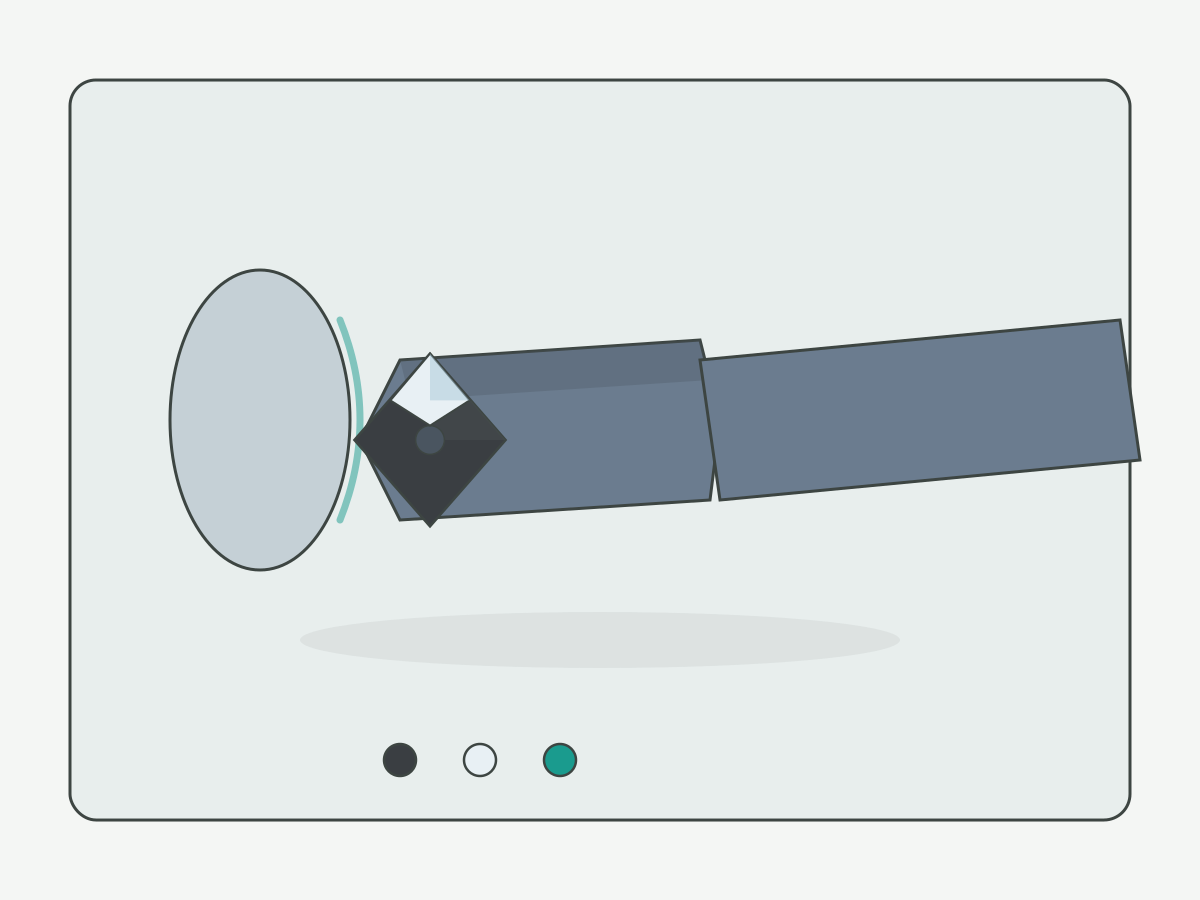

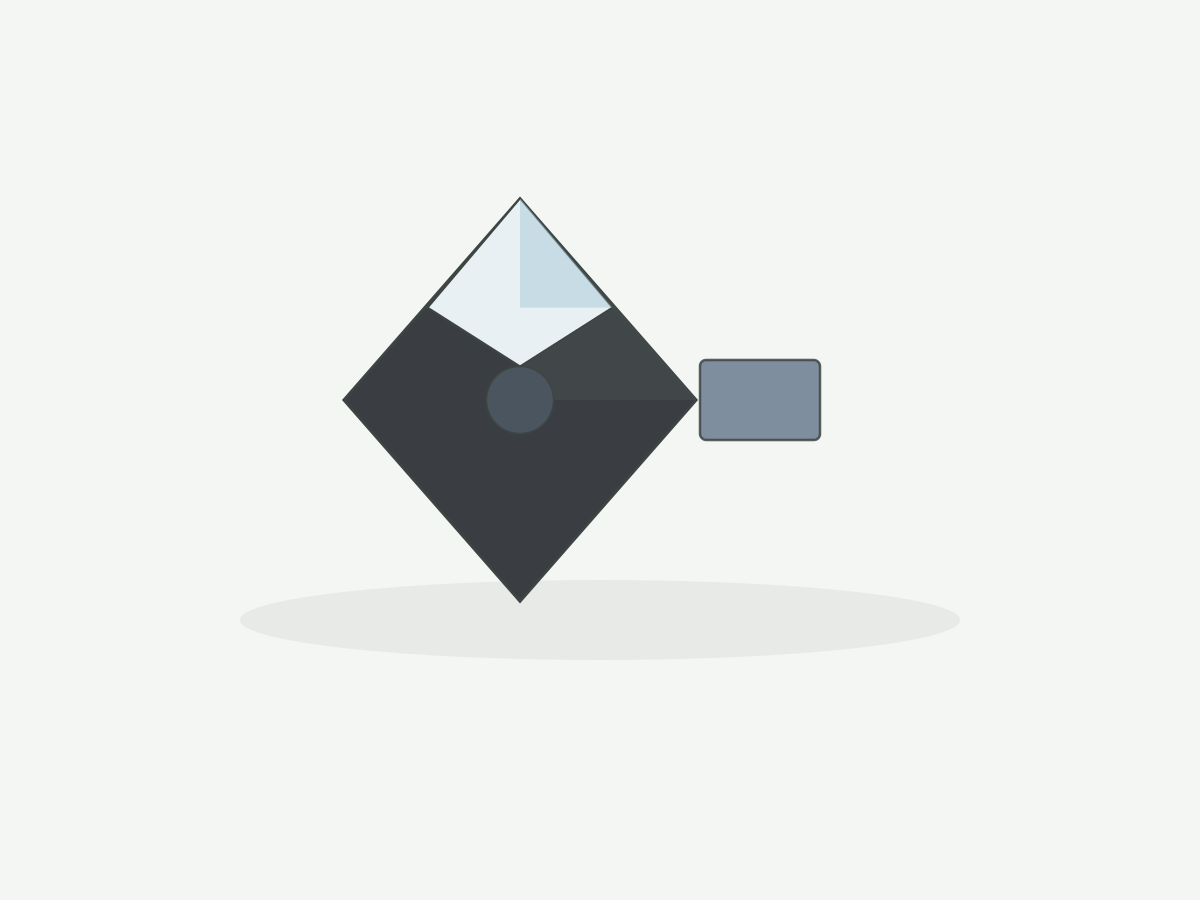

PCD insert structure
Use photos and structure views to show the PCD cutting portion and the substrate body. Not every “diamond insert” search maps to the same structure. General carbide selection stays on cutting inserts; custom PCD capability overview on PCD tooling.
- PCD tip Cutting edge structure — confirm from series drawing.
- Substrate / body Supports clamping and heat path; pocket must match.
- Not ferrous hard turning Hardened ferrous finishing usually routes to CBN/PCBN review; send hardness data via RFQ (no separate specialty link on this page).
Nonferrous materials and application boundaries
Show suitability vs needs-review conditions. Workpiece grade and microstructure must be checked — do not claim suitability for all metals.
| Direction | First-pass | Confirm |
|---|---|---|
| Aluminum / nonferrous turning | PCD route candidate | Alloy, volume, interrupted cut, holder |
| General steels / cast irons | Carbide hub first | Cutting inserts |
| Hardened ferrous finishing | CBN / PCBN route | Hardness + duty · RFQ / specialty page |
Shape, edge prep, and holder interface
List size, nose radius, edge prep, and clamping interface column by column. Keep supplier codes and internal IDs consistent when both exist.
Holder check first
RFQ reviews holder and space before locking a PCD option. Regrind/repair services appear only after supply confirmation.
Continuous vs interrupted cutting
Collect continuous and interrupted duties separately. Any published result must include material, machine, parameters, and measurement conditions — missing records are not filled with improvement percentages.
Drawing RFQ
Check holder and clearance first, then PCD options. For ISO shape decoding on carbide families, see turning insert selection.
Selection guide
| Series / task | PCD structure | Shape | Size mm | Nose R mm | Edge | Holder match | Duty |
|---|---|---|---|---|---|---|---|
| PCD turning review | Engineering confirm | to your drawing / ISO if known | to your drawing | to your drawing | Confirm | Pocket · confirm | Cont. / interrupt · confirm |
Blank cells intentional. No invented SKUs, life, or % claims. For hard turning or hardened ferrous duties, send hardness data via RFQ for CBN/PCBN review.
PCD inserts FAQ
Are all “diamond inserts” PCD?
No. “Diamond insert” in search language can mean PCD, diamond-coated tools, or other structures. This page covers PCD turning inserts for nonferrous work. Confirm the cutting-edge structure from the series drawing — do not assume every diamond keyword is the same product.
How do you review interrupted cuts?
Send material, continuous vs interrupted duty, holder/interface, and any prior failure mode. Result claims on this site require material, machine, parameters, and measurement conditions — missing records are not filled with improvement percentages.
Can my existing holder take a PCD insert?
Only if pocket style, insert size/thickness, and clamping match. Send the holder designation or a clear photo with the insert seat visible. Check compatibility before ordering PCD edges.
Where do general carbide inserts live?
Carbide remains the primary insert hub on cutting inserts. This page is the specialty PCD turning route. Custom PCD tooling overview: PCD tooling.
Request PCD Insert Review
Page K036 · Product PCD Inserts for Nonferrous Turning. Required: email, product or task, requirement description. Optional: drawing upload, company, material, sizes, machine, quantity. “Model uncertain” is allowed.
