Quick answer
- Open-slot end mill when the slot is open from the top and width/depth fit a shank cutter: prefer a slotting or end-mill path when the groove is machined from the open face, chip escape is upward or along the flute, and diameter versus slot width can be planned without undercutting a closed T head. Lock material, slot width and depth, stock per pass, finish acceptance, and stick-out before copying a neighbour's diameter or flute count.
- T-slot cutter when the feature needs a undercut head or T profile: prefer a T-slot cutter when the drawing calls for a T cross-section, a undercut land under a flange, or a dedicated T-groove the open-slot end mill cannot form in one family of paths. Browse PCD T-slot constructions when material suitability and edge protection dominate; do not treat every groove as a T-slot because the fixture uses T-nuts.
- Stage the cut when chip packing or reach blocks a single pass: prefer rough-then-finish or multi-depth staging when full-width, full-depth slotting packs chips, rings the spindle, or exceeds usable stick-out. Name coolant or air blast and evacuation direction on the sheet. Do not invent life or cycle-time claims from staging slogans alone.
- Next step: lock open-slot versus T-slot intent, width/depth/reach, chip-evacuation and stage plan, size and rigidity boundaries, then open RFQ with slot or T-slot intent open if needed. Do not invent life, price, or ROI from cutter-family slogans.
Selection path (stop when a field is missing):
| Step | What you lock | If missing |
|---|---|---|
| 1 Feature type | Open slot / groove / keyway note vs T-slot / undercut head | Stop; recover the drawing section |
| 2 Width, depth, reach | Slot width, depth, tool diameter intent, stick-out / collision | Do not pick from drawer habit alone |
| 3 Chip evacuation | Flood / MQL / air, flute space, stage plan | Keep stage open; do not force full-depth in one pass |
| 4 Size and rigidity | Diameter vs stick-out, fixture clamp, usable power band | Do not invent life % as a substitute |
| 5 Process checklist | Entry/exit, sense gate note, inspection method | Do not ramp without acceptance named |
| 6 Trial and RFQ | Trial-cut record + matched RFQ package | Open RFQ with incomplete SKU if needed |
Jump: Open slot vs T-slot · Width, depth and reach · Chip evacuation and staged cuts · Size and rigidity · Process checklist · RFQ · Confirm · FAQ

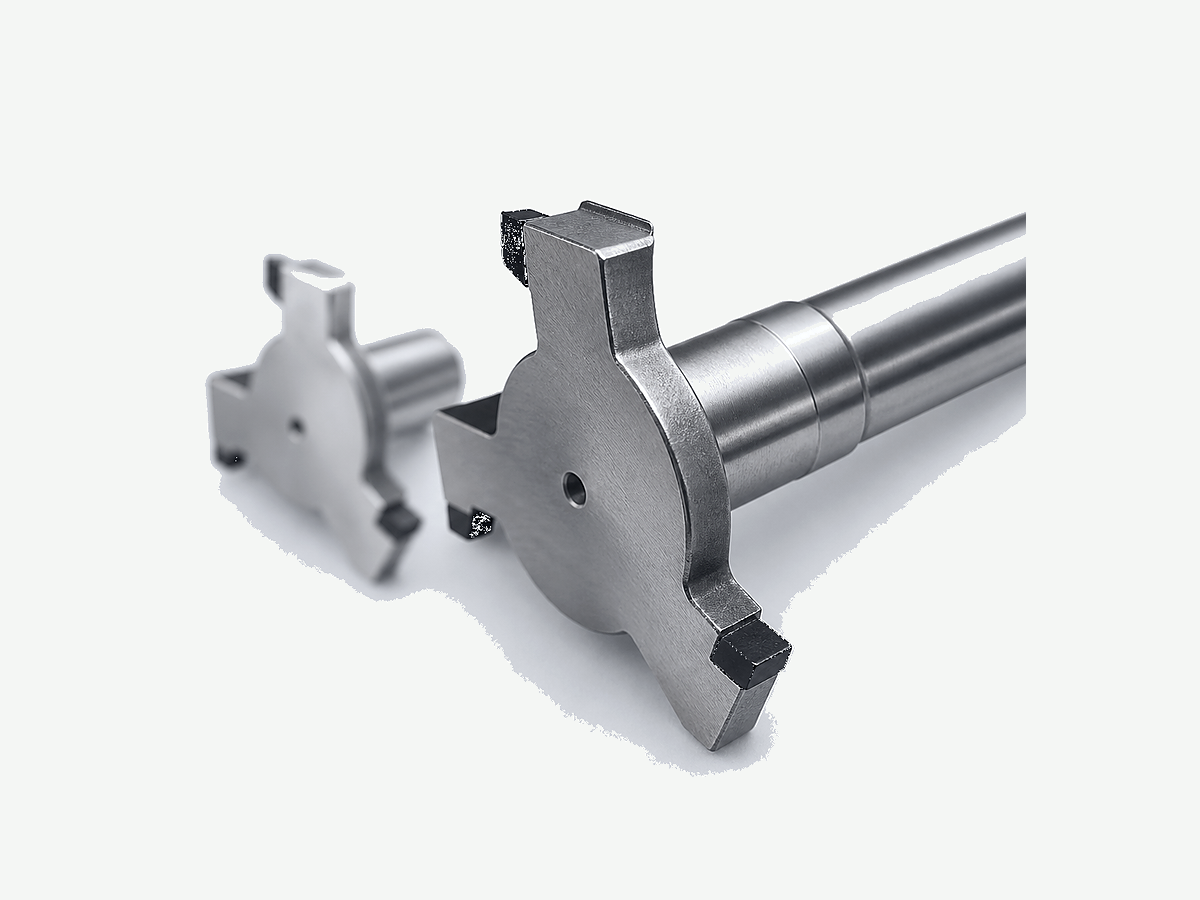

Open slot versus T-slot geometry
Shops often say "slot mill" for every groove. Lock whether the section is an open slot from the top or a T profile with an undercut head before debating catalogue diameter or PCD slogans.
- Open slot / groove / keyway: the cutter enters from the open face and forms a U or rectangular section. Typical tools are slotting end mills or general carbide end mills used for plunging or side-milling a groove. Live constructions sit on carbide end mills. Family context for end mill versus face or shell bodies stays on the live face mill vs shell mill vs end mill guide; this page only gates slot feature choice.
- T-slot / undercut head: the section needs a horizontal undercut under a flange or a dedicated T groove. A T-slot cutter is shaped for that undercut; an open-slot end mill alone cannot form the closed head without a second family of tools or a redesign. Live constructions sit on PCD T-slot cutters when material suitability and edge protection are open; carbide T-slot bodies follow the same geometry gate even when substrate differs.
- Fixture T-nuts are not the same OWN: table T-slots for workholding are machine features. Do not copy fixture T-slot recipes onto a workpiece T-groove without naming width, depth, undercut, and material on the drawing.
- Overlap to name explicitly: some jobs rough an open slot with an end mill, then finish or undercut with a T-slot cutter. Name the op split. A facing land next to a slot is still face-milling OWN on the live face milling guide, not this page.
- Out of OWN here: three-way face/shell/end taxonomy books, surface-marks encyclopedias, chatter overviews (soft-noted until live), coatings and size-chart books, full SFM libraries, peripheral process books, climb long guides, and holemaking OWN.
Public milling literacy such as this milling knowledge overview and this machining formulas overview helps teams name engagement and chip load without a universal catalogue ranking. Manufacturing society vocabulary such as this manufacturing society portal supports naming without inventing slang as a standard.

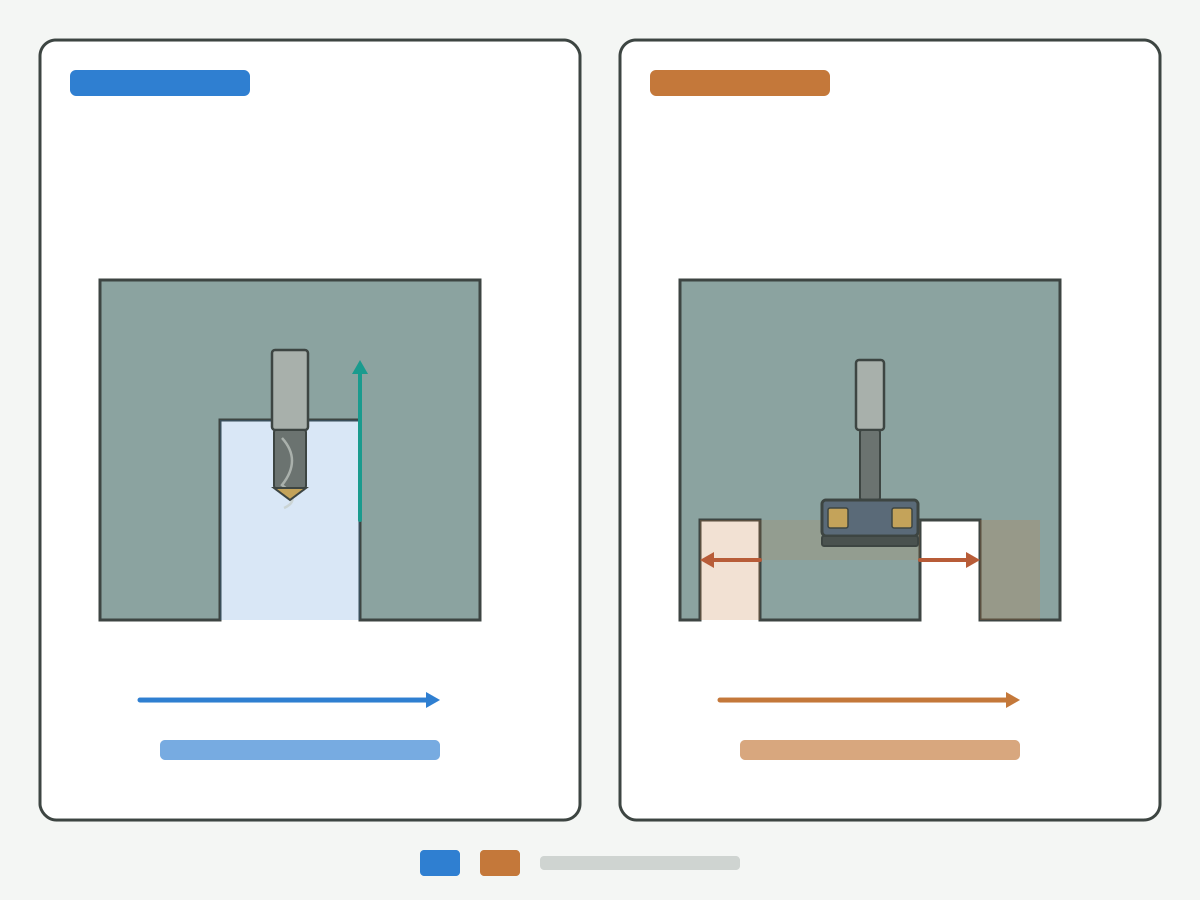

Schematic illustration: not a catalogue ranking or cutting-data table. Confirm open-slot versus T-slot section names on your setup sheet and cutter data.
Slot width, depth and reach
Width, depth, and geometric reach are different gates. A cutter that matches width can still fail depth if stick-out rings the spindle; a T-slot body that fits the undercut can still collide with the flange if reach is wrong.
- Width versus tool diameter: for open slots, diameter is often close to slot width for a single-pass strategy, or smaller when multi-pass side milling is planned. Do not force a full-width single pass when chip packing or power notes say otherwise. Prefer naming ae intent beside diameter.
- Depth versus flute length and stick-out: usable flute length and holder stick-out must clear depth with a stiffness margin. Prefer the shortest workable stick-out that still reaches the floor. Long stick-out trades reach for chatter risk; a dedicated machining-chatter diagnosis overview remains soft-noted until live.
- T-slot undercut reach: the T cutter must clear the neck, form the head width, and exit without hitting clamps or the opposite wall. Name neck width, head width, and head depth on the sheet before copying a catalogue sketch.
- Collision and fixture envelope: vices, clamps, and tombstones often sit close to slot work. A "correct" diameter still fails if the shank or body hits the fixture. Side-milling context sits on the live peripheral milling guide; sense gates sit on the live climb vs conventional milling guide.
- Holder literacy: toolholding literacy such as this toolholding overview and this tool holder technology overview belongs beside stick-out notes on deep slots.
Practice portals such as this cutting tools practice overview and this CNC milling overview support reading load and packing symptoms; they are not HC shop results. Standards literacy such as this codes and standards portal and this international standards overview frames industry naming only. National standards literacy such as this national standards overview adds naming context only.

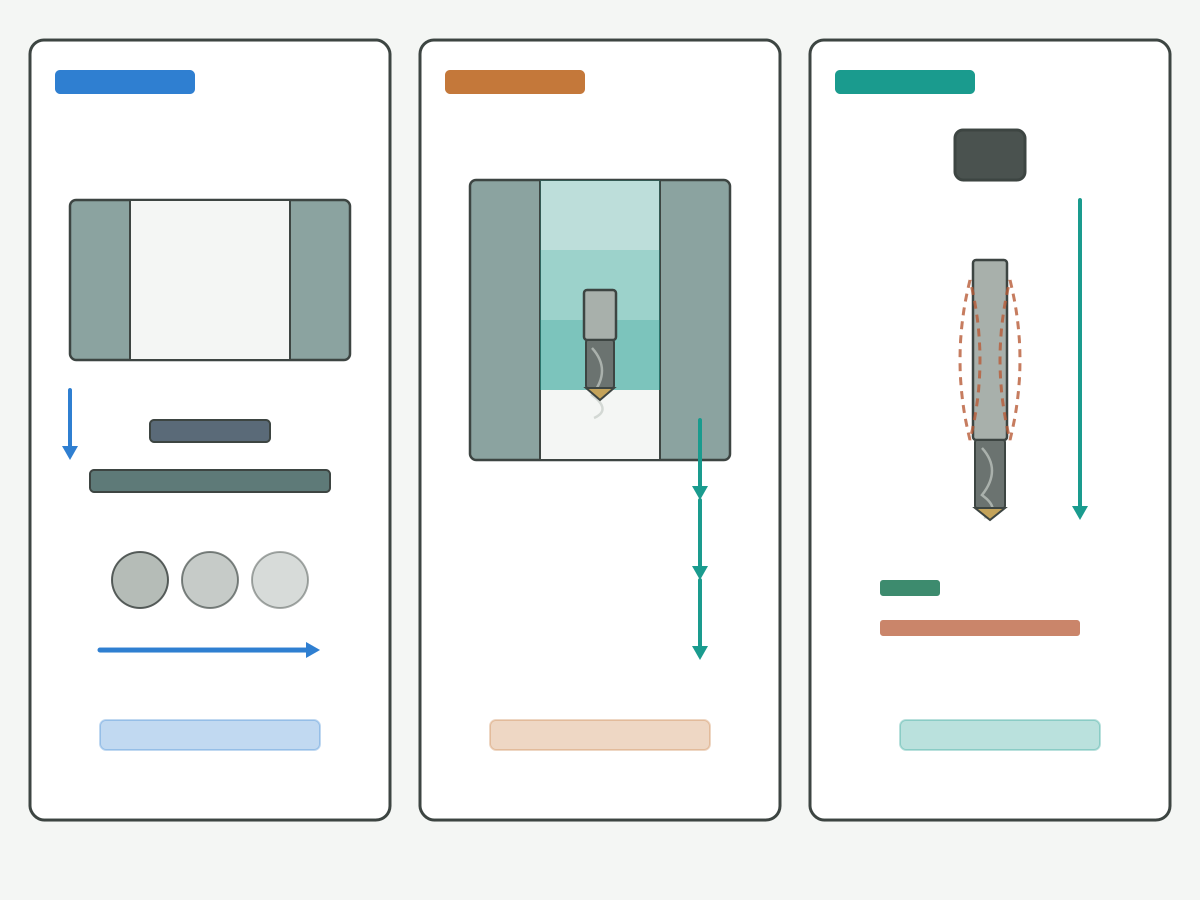

Schematic illustration: boundaries only, not a catalogue ranking. Confirm width, depth, stick-out, and undercut reach on your program and machine envelope.
| Feature / reach lens | Typical tool lean | Watch for | Escalate when… |
|---|---|---|---|
| Open slot, modest depth | Carbide end mill / slotting end mill | Full-width chip pack; harsh plunge | Width and depth never named |
| Deep open slot | Staged depth + shortest stick-out | Long stick-out chatter; packed flutes | Stage plan missing |
| T-slot / undercut head | T-slot cutter (PCD when material suits) | Wrong neck clearance; flange collision | Section never named as T |
| Mixed open slot + undercut | Split ops; keep both families open | One-tool slogans that ignore section | Nobody will state op split |
Chip evacuation and staged cuts
Slots trap chips more than open faces. Evacuation and staging belong on the sheet before feed is copied from a facing recipe.
- Full-width versus multi-pass: a full-width open-slot pass can pack chips in the flute gullet. Prefer a smaller diameter with side passes, or a staged depth plan, when packing or power notes appear. Do not invent a life percentage from "full width is always faster."
- Plunge, ramp, and entry: harsh plunges into a closed slot raise axial load. Prefer a ramp or helical entry when the control and cutter allow it, and name the entry on the setup sheet.
- Coolant, MQL, and air blast: name the mode beside material and flute count. Flood or directed air often matters more in deep slots than on open faces. Coolant literacy such as this coolant know-how overview supports naming flood, MQL, or dry without turning this page into a fluid encyclopedia.
- Staged rough then finish: leave stock for a finish pass when wall finish or width tolerance is tight. A milling surface-finish book remains soft-noted until live; here only gate that acceptance must be named before claiming the slot is done.
- T-slot chip path: undercut heads change chip escape direction. Prefer lighter radial engagement and confirmed clearance when the head packs chips against the flange.
Third-party tooling literacy such as this engineering calculators portal and this cutting data notes portal adds context for naming chip load and feed; neither is an HC trial result. Research society literacy such as this CIRP research portal frames process research boundaries only.
| Evacuation lens | Lock on the sheet | Fail signal | Do not invent |
|---|---|---|---|
| Full-width open slot | Diameter vs width, flute space, coolant/air | Packed flutes, burnt chips, sudden load spike | Life % from stock alone |
| Deep staged cuts | Depth per stage, stick-out, entry method | Chatter growth, wall marks, size drift | Cycle-time claims without a trial |
| T-slot undercut | Neck clearance, head engagement, chip path | Flange rub, packed head, broken neck | Price or ROI from PCD slogans |
| Finish acceptance | Width/depth tolerance, Ra or visual policy | Rejects without a named method | Ra promise from tool family alone |
Cutter size and rigidity boundaries (qualitative)
Size and rigidity belong as boundaries on the sheet, not as invented price or life curves. Keep numbers on the cutter data sheet and trial record; this page names what to lock.
- Diameter versus stick-out: larger diameter raises stiffness for a given stick-out but can worsen chip packing in a narrow slot. Prefer naming both diameter and stick-out together. Do not upsize only "for finish" when the fixture is the soft link.
- Fixturing stiffness: ringing tables and light clamps turn a correct slot tool into chatter. Prefer stiffening the setup before changing substrate slogans. A dedicated machining-chatter diagnosis overview remains soft-noted until live.
- Spindle power and torque band: full-width slotting can raise continuous load. An underpowered spindle fails a aggressive slot even when width looks suitable. Keep engagement open when power notes are missing.
- Spare and change-over policy: solid carbide end mills trade whole-tool change; indexable or PCD T-slot bodies trade edge protection and spare policy. Name which policy the cell can sustain. Do not invent ROI from insert-count or PCD slogans.
- Surface and acceptance: finish acceptance is Ra band, visual policy, width/depth gauge, or a mix. Metrology literacy such as this public metrology laboratory entry and this weights and measures overview supports naming acceptance beside trial numbers.
- Out of OWN here: price lists, MOQ, unverified lead times, invented life percentages, case-count marketing, full SFM libraries, and three-way face/shell/end encyclopedias (those stay on their live guides).
| Boundary | Lock on the sheet | Fail signal | Do not invent |
|---|---|---|---|
| Diameter / stick-out | Tool Dc, flute length, stick-out method | Chatter, taper, wall marks | Life % from diameter alone |
| Fixture / power | Clamp plan, usable power band | Stall, thermal trip, ringing | Price or ROI from stiffness slogans |
| Spare policy | Whole-tool vs edge / PCD spare rhythm | Line stops waiting on undocumented spares | Unverified cycle-time claims |
| Finish / size acceptance | Width/depth method + Ra or visual policy | Rejects without a named method | Ra promise from tool family alone |
Process checklist (conditional)
Use this table as a conditional map, not an unconditional ranking. Prefer the column that matches the bottleneck you named. When tool family remains open, keep it open on the RFQ and trial under the same acceptance method.
| Decision lens | Lean open-slot end mill when… | Lean T-slot cutter when… | Stage / split when… | Keep open / escalate when… |
|---|---|---|---|---|
| Section type | Open U / rectangular groove from the top | T profile or undercut head required | Rough open then undercut | Section never named |
| Width / depth | Dc and flute length fit with stiffness margin | Neck and head dimensions fit the T body | Depth exceeds one safe pass | Width/depth unknown |
| Chip evacuation | Flute space and coolant/air clear the groove | Head chip path confirmed under the flange | Packing appears mid-depth | Evacuation mode missing |
| Reach / collision | Shank clears clamps into the open slot | T body clears flange and opposite wall | Op split avoids one long stick-out | Envelope unknown |
| Rigidity / power | Power and fixture sustain planned engagement | Same, with undercut engagement limited | Lighter ae or ap per stage | Power band missing |
| Sister OWN pointer | End-mill family on live three-way guide; peripheral on N012 | Browse PCD T-slot product when material suits | Facing lands on live face milling guide | Wrong OWN being forced here |
| RFQ posture | State open-slot intent + width/depth/stick-out | State T-slot intent + neck/head notes | State stage plan + acceptance method | Inputs incomplete and nobody will stop |
A conditional table forces the bottleneck name onto the sheet. An unconditional "T-slot cutters are always better than end mills for grooves" slogan is not a process. Surface-marks and chatter overviews stay soft-noted until those pages publish.
Procurement checklist (RFQ inputs)
Send what you know. Leave life, price, and unverified cycle-time fields blank. Do not invent an unconditional open-slot versus T-slot ranking.
- Drawing revision and section notes (open slot / groove / keyway versus T-slot / undercut; interrupted or continuous).
- Material grade, condition, and coolant / MQL / dry / air-blast intent.
- Slot width, depth, length, and stock per pass or stage plan if known.
- Reach and collision envelope notes (clamps, tombstone, stick-out, flange clearance for T).
- Tool intent: open-slot end mill, T-slot cutter, split ops, or open; diameter / neck / head notes if known.
- Finish and size acceptance (width/depth method, Ra band, visual policy, or mix) and inspection method.
- Machine class, usable spindle power / torque band at planned RPM, table rigidity notes.
- Trial-cut notes and acceptance method; identifiers for repeat orders.
Browse live constructions here: carbide end mills and PCD T-slot cutters. Family framing for end mills versus face or shell bodies stays on the live face mill vs shell mill vs end mill guide. Open the request form when the package is ready: custom cutting tool RFQ.
Confirm the specification with engineering support
Before production ramp, confirm section type, width/depth/reach, chip-evacuation and stage plan, finish and size acceptance, machine power band, and spare policy with engineering. Hand the package to a product and RFQ path for a matched slot or T-slot milling recommendation, not a catalogue guess. HENTRY / HC supports drawing-based carbide end-mill and PCD T-slot proposals. No price, MOQ, or unverified lead time is stated on this page.
Specification fields to confirm
- Proposed tool model or drawing (open-slot end mill + holder, or T-slot cutter + holder).
- Material grade / condition and coolant / air mode.
- Section type, slot width and depth, stock per pass or stage plan if known.
- Stick-out, neck/head clearance for T, and collision notes.
- Finish and size acceptance method (width/depth gauge, Ra and/or visual).
- Machine power / torque band, fixture clamp plan, holder notes.
- Family intent (open-slot end mill, T-slot cutter, split ops, or open).
- Inspection and sample acceptance expectations.
- Identifiers needed for repeat orders.
Trial plan (minimum)
- Same drawing revision and acceptance criteria as the checklist.
- First-off record of load, chip packing, marks, width/depth, and clearance before compensation edits.
- Change one variable at a time when comparing family, stick-out, or stage plan under the same stock and acceptance intent.
- Stop when chatter grows, chips pack, marks look abnormal, size drifts, or the tool collides with the envelope.
- Do not claim a family "won" without those controls.
Review listed constructions here: explore carbide end mills · explore PCD T-slot cutters. Research and practice portals such as this CIRP research portal (also cited above for process research framing) and ISO public information such as this international standards overview support industry literacy only.
Request a slot / T-slot milling recommendation
Suggested enquiry subject: slot vs T-slot - [material] - [section] - [width x depth] - [reach] - [family]
Slot Milling and T Slot Tool Selection FAQ
When should I use an open-slot end mill instead of a T-slot cutter?
Use an open-slot end mill when the groove is open from the top and a shank cutter can form the U or rectangular section with planned width, depth, and chip escape. Prefer a T-slot cutter when the drawing needs a undercut head or T profile the open-slot path cannot form. Lock material, section type, width and depth, stick-out, and acceptance before copying a neighbour's diameter or PCD slogan.
Is every table T-slot the same as a workpiece T-groove?
No. Fixture T-slots for workholding are machine features. Workpiece T-grooves need named neck width, head width, head depth, material, and clearance. Prefer T-slot cutter language when the section is a undercut head; prefer open-slot language when the feature is only an open groove from the top.
How do width, depth, and stick-out affect the choice?
Diameter must fit width strategy; flute length and stick-out must clear depth with a stiffness margin. Prefer the shortest workable stick-out that still reaches the floor or undercut. Excessive stick-out creates chatter and taper even when the family label looks right. Keep engagement open when power or fixture notes are missing.
What chip-evacuation and staging checks should I lock?
Name whether the plan is full-width single pass, multi-pass side milling, staged depth, or a rough-then-finish split. Lock coolant or air direction and flute space. Fail signals include packed flutes, burnt chips, sudden load spikes, and wall marks. Do not invent cycle-time or life claims from staging slogans alone.
What size and rigidity boundaries belong on the sheet?
Lock tool diameter versus stick-out, fixture clamp plan, usable spindle power band, spare policy, and size/finish acceptance method. Fail signals include stall, chatter, packed heads on T cuts, and rejects without a named inspection method. Do not invent life percentages, prices, ROI, or unverified case counts from family slogans alone.
Which inputs should I send in an RFQ for slot or T-slot tools?
Send drawing revision, material and coolant or air intent, section type, width and depth, reach and collision notes, tool family intent or open, stage plan if known, finish and size acceptance, machine power band, trial notes, and acceptance method. Leave unverified life and price fields blank.
Does this page replace the face/shell/end, face-milling, or peripheral pages?
No. Three-way face/shell/end taxonomy, face-milling process detail, milling-tools navigation, peripheral milling, and climb versus conventional each keep their live OWN. A surface-finish book and chatter overview remain soft-noted until live. This page owns open-slot versus T-slot geometry, width/depth/reach, chip evacuation and staged cuts, qualitative size and rigidity boundaries, the conditional process checklist, and the RFQ checklist only.
When does this page not apply?
It does not apply when you need invented life percentages, prices, ROI, or unverified case counts; when you need an unconditional best-slot-mill ranking; when you need a three-way face/shell/end encyclopedia, face-milling process encyclopedia, fly-cutter versus face-mill encyclopedia, surface-marks encyclopedia, chatter overview, 2-versus-4 flute encyclopedia, coatings or size-chart books, full SFM library, climb long guide, peripheral process book, or holemaking OWN; or when section type, width/depth, reach, evacuation mode, and acceptance notes are missing. Fix the inputs first.
