Quick answer
- Tell chatter from feed marks before changing the catalogue number: prefer irregular, wandering, or beat-pattern marks that change with stick-out, clamps, or speed bands as chatter traces. Prefer regular, pitch-like ridges that scale with feed per tooth and effective flute count as feed lines. Do not treat every striped face as chatter, and do not invent a Hz case number from a phone photo.
- Check stiffness and stick-out before blaming the substrate slogan: prefer shorter stick-out, stiffer holder, and a fixture that does not ring when the mark tracks the setup. Prefer naming speed and tooth-pass intent when the mark shifts with speed bands. Change one setup lever at a time under the same acceptance.
- Mitigate with rigidity, path, and tool levers: prefer rigidity and path first when the setup is soft; prefer tool geometry or flute-count intent when chip load and engagement are the bottleneck. Prefer opening RFQ with mark type, stick-out, fixture notes, and acceptance named rather than asking for "the anti-chatter mill."
- Next step: lock chatter versus feed-mark type, cause class, diagnosis order, mitigation direction, then open RFQ with chatter / vibration review intent. Do not invent life, price, ROI, or Hz promises from tool-family slogans.
Judgment path (stop when a field is missing):
| Step | What you lock | If missing |
|---|---|---|
| 1 Mark type | Chatter trace / feed lines / mixed / unknown | Stop; photograph and name the pattern before changing tools |
| 2 Setup stiffness | Stick-out, holder class, fixture clamp plan | Do not invent a coating or life fix for a soft setup |
| 3 Speed / tooth-pass | RPM band and tooth-pass intent if speed-sensitive | Keep speed open; do not invent a Hz case |
| 4 Path and engagement | ae/ap, entry/exit, climb vs conventional note | Keep path open; do not blame substrate alone |
| 5 Tool geometry | Dc, flutes, overhang, edge condition | Do not invent life % as a substitute |
| 6 Trial and RFQ | Trial-cut record + matched RFQ package | Open RFQ with incomplete SKU if needed |
Jump: Chatter vs feed marks · Common causes · Diagnosis order · Mitigation and rigidity · Shop scenarios · Diagnosis table · Process checklist · RFQ · Confirm · FAQ
What chatter is, and the boundary versus feed marks
Shops often call every striped face "chatter." Lock a qualitative boundary before debating catalogue diameter, coating slogans, or an invented Hz number from a phone photo.
- Chatter (self-excited vibration traces): irregular, wandering, or beat-pattern marks that change when stick-out, clamps, or speed bands change. Sound and feel often track the mark. Prefer naming setup stiffness and speed sensitivity first. This page owns that diagnosis gate for milling support.
- Regular feed lines (tooth marks): parallel ridges whose spacing tracks feed per tooth and effective flute count. Prefer checking fz and whether one flute dominates. Regular spacing that scales with feed is usually feed lines, not a chatter case. Detailed milling mark typology stays on the live milling surface finish guide; this page only draws the boundary so feed lines are not mislabeled as chatter.
- Mixed marks: feed lines plus a secondary vibration overlay are common. Prefer fixing the dominant pattern first under one acceptance method. Do not invent a "best anti-chatter mill" ranking from a mixed photo.
- Forced vibration versus chatter: some marks track a clear external driver (unbalanced holder, intermittent clamp slap). Prefer naming the driver when obvious. Prefer self-excited chatter when the mark grows with engagement and softens when stick-out shortens, without inventing a Hz certificate.
- Out of OWN here: milling tool-mark encyclopedia (live peer), hole-side reamer chatter encyclopedia (sister), slot/T-slot selection, three-way face/shell/end books, coatings and size charts, full SFM libraries, and holemaking OWN.
Public metrology literacy such as this introduction to surface finish metrology, this public metrology laboratory entry, and this sensor science overview helps teams name patterns without inventing shop Ra or Hz cases. Manufacturing society vocabulary such as this manufacturing society portal and practice literacy such as this chatter in CNC milling overview support naming; they are not shop Hz certificates.

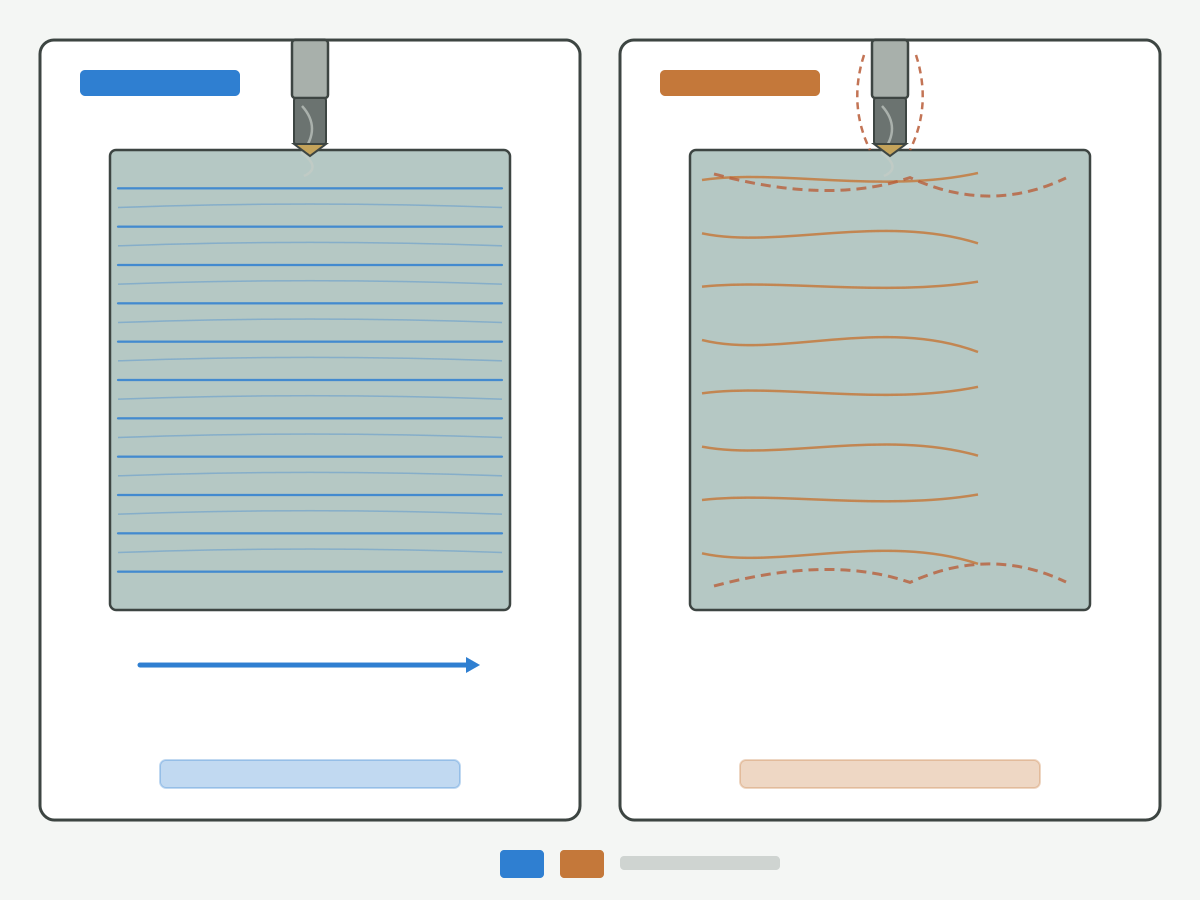

Schematic illustration: not a Hz case table or catalogue ranking. Confirm chatter versus feed-mark names on your setup sheet and acceptance method.
Common causes: stiffness, stick-out, tooth-pass, fixturing, tool
Chatter usually tracks a soft loop in the machine-tool-workpiece system. Name the cause class before swapping family slogans.
- Stiffness and stick-out: long overhang, soft holders, and slim tools lower loop stiffness. Prefer shortening stick-out and stiffening the holder before inventing a life or coating fix. Toolholding literacy: this toolholding overview and this toolholding education overview.
- Spindle speed and tooth-pass: some setups are speed-sensitive: the mark softens or hardens when RPM moves across a band while engagement stays similar. Prefer naming the speed band and tooth-pass intent on the sheet. Prefer changing one variable at a time. Do not invent a measured Hz case number or "magic RPM" claim from a phone photo alone.
- Fixturing and workpiece support: thin walls, long spans, and clamps that leave the cut zone unsupported can ring even when the tool is short. Prefer naming clamp plan and support pads beside stick-out. Prefer stopping when the mark tracks a clamp move.
- Engagement and path: heavy ae/ap, abrupt entry, and dwells can excite a soft setup. Prefer soft entry, controlled engagement, and climb versus conventional sense named on the sheet. Sense detail stays on the live climb vs conventional milling guide; this page only gates that path belongs beside chatter diagnosis.
- Tool geometry and edge condition: dull edges, wrong flute count for chip space, and oversized engagement relative to Dc can raise force and grow vibration. Prefer naming Dc, flutes, overhang, and edge condition. Flute-count gates stay on the live 2 flute vs 4 flute end mill guide; family framing stays on the live face mill vs shell mill vs end mill guide.
- Feature context without stealing sister OWN: deep slots and trapped chips change vibration risk; prefer live slot milling tools guide and peripheral milling. Face detail: live face milling guide. Hole-side: sister PCD reamer chatter and vibration diagnosis.
Vibration literacy such as this machining vibrations and chatter overview and milling literacy such as this milling knowledge overview help teams name levers without a catalogue ranking. Formula literacy such as this machining formulas overview and this milling formulas overview supports chip-load naming without inventing a Hz case. Practice portals such as this cutting tools practice overview and this CNC milling overview support symptom reading only.

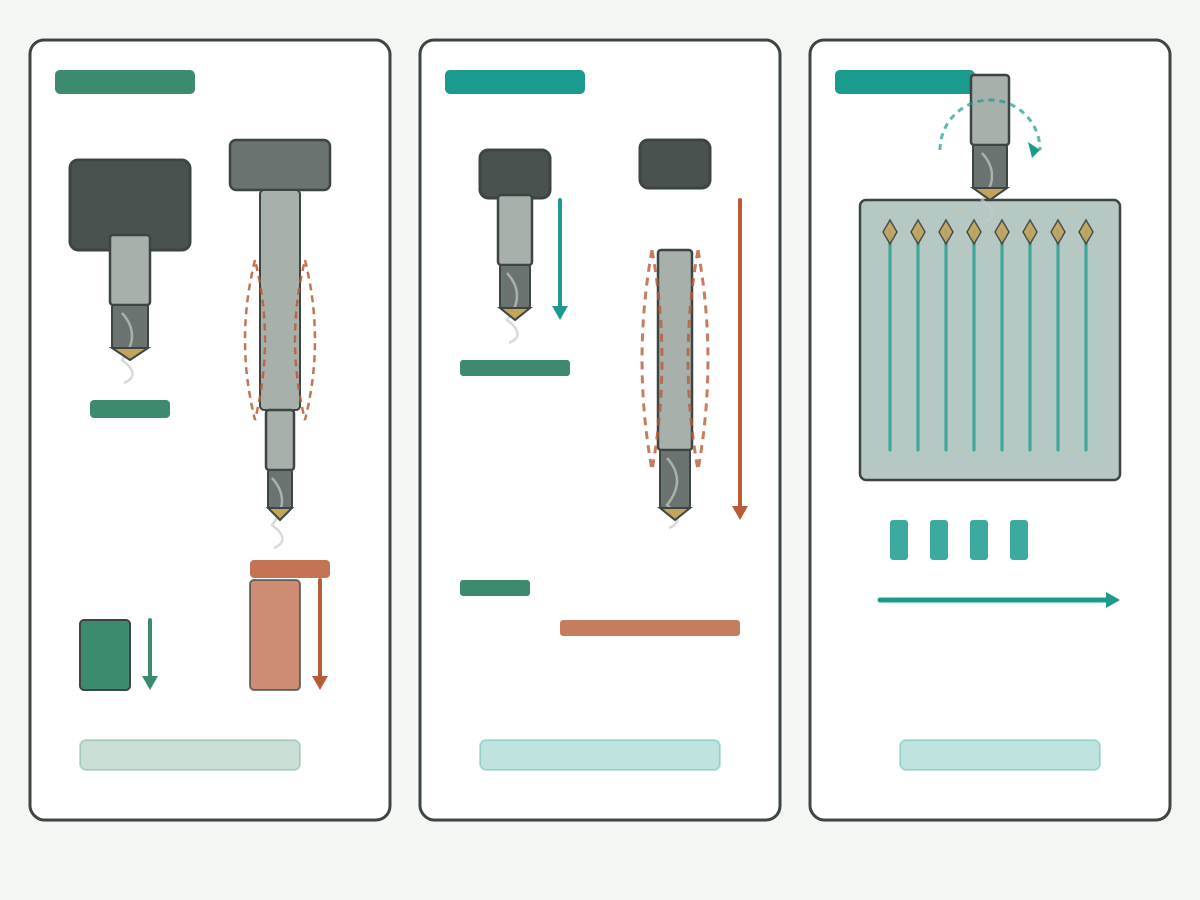

Schematic illustration: boundaries only, not a catalogue ranking. Confirm stick-out, holder, fixture, and speed-band notes on your setup sheet.
Shop diagnosis order
Use a fixed order so the team does not jump to catalogue changes while stick-out and clamps are still open. Prefer stopping when a field is missing.
- Photograph and name the mark: chatter trace, feed lines, mixed, or unknown. Prefer scale notes and consistent lighting.
- Lock stick-out and holder: measure overhang, name holder class, and note whether shorter stick-out is possible.
- Lock fixture and support: name clamp plan and whether the cut zone is supported. Prefer a clamp trial before a family change when the mark tracks clamps.
- Test speed sensitivity carefully: if safe, move RPM across a narrow band under the same engagement. Record the band as a note, not an invented Hz certificate.
- Review path and engagement: ae/ap, entry/exit, and climb versus conventional sense. Prefer soft entry when allowed.
- Review tool geometry and edge: Dc, flutes, overhang, edge wear. Prefer replacing a dull edge before inventing a substrate slogan.
- Trial one change at a time: keep acceptance fixed. Prefer rigidity or path first when soft; prefer geometry when engagement is the bottleneck.
- Open RFQ when inputs stay incomplete: send photos, stick-out, fixture notes, and open fields rather than guessing a SKU.
Research portals such as this CIRP research portal and this ASME portal, plus metrology portals such as this PTB overview and this NPL overview, support literacy only, not shop Hz cases.
Mitigation directions: rigidity, path, and tool
Mitigation stays inside levers you can name on the sheet. Prefer rigidity and path when the loop is soft; prefer tool geometry when chip load and engagement are wrong. Do not invent life percentages, prices, ROI, or Hz promises.
- Rigidity first: shorten stick-out, stiffen holder, add support pads, and tighten clamp plan when the mark tracks setup. Prefer proving a shorter overhang before changing family slogans.
- Path and engagement: reduce ae/ap when the cut is overloaded, soften entry/exit, and name climb versus conventional sense. Prefer constant engagement where the feature allows. Path sense detail stays on the live climb guide; this page only gates the lever.
- Speed-band notes without inventing Hz: when the mark is clearly speed-sensitive, prefer recording a workable RPM band under the same engagement. Do not publish an invented resonant frequency as a customer claim.
- Tool geometry levers: prefer appropriate Dc and flute count for chip space, a sharp edge, and overhang that matches reach. Prefer naming geometry intent on RFQ, not "the quietest mill."
- What not to do here: no invented life %, price, ROI, or case counts; do not steal K023 mark typology OWN; do not replace the sister reamer chatter page for holes; no unconditional end-mill versus face-mill ranking.
Cutting-tool practice such as this machining process education overview and machine-builder literacy such as this machining resources overview support naming levers; they are not HC trial results. Metrology literacy such as this PTB dimensional metrology overview supports measurement naming only.
Shop scenarios (qualitative)
Teaching aids only; no invented Hz, life %, price, ROI, or case counts.
- Long stick-out pocket wall: irregular marks grow with overhang and soften when stick-out shortens under the same program. Prefer rigidity first; keep family open until stick-out is locked.
- Thin-wall plate with distant clamps: marks track clamp moves more than RPM. Prefer support pads and clamp plan before changing the catalogue number.
- Speed-sensitive face pass: mark severity changes across a narrow RPM band at similar ae/ap. Prefer recording the workable band; do not invent a Hz certificate.
- Regular feed lines mislabeled as chatter: ridges scale with fz and flute count and ignore stick-out. Prefer the live milling surface finish mark typology; do not open an anti-chatter RFQ for feed lines alone.
- Dull edge on a finish pass: force rises and irregular traces appear even with short stick-out. Prefer edge condition checks before inventing a substrate slogan.
- Deep slot with packed chips: vibration risk rises with trapped chips. Prefer the live slot milling tools guide for feature selection; this page only gates chip packing beside chatter diagnosis.
Diagnosis comparison (conditional)
Use this table to name the bottleneck. It is not an unconditional ranking of tools or brands.
| Observation | Lean chatter diagnosis when… | Lean feed-mark / finish path when… | Escalate / keep open when… |
|---|---|---|---|
| Mark pattern | Irregular, wandering, beat-like; changes with stick-out or clamps | Regular pitch-like ridges that scale with fz | Pattern never photographed or typed |
| Setup response | Shortening stick-out or stiffening holder softens the mark | Stick-out change does little; fz change does | Stick-out and fz both unknown |
| Speed band | Mark shifts across a narrow RPM band under same engagement | Mark ignores RPM and tracks feed only | Unsafe to vary RPM; leave band open on RFQ |
| Fixture | Mark tracks clamp moves or unsupported spans | Fixture solid; mark tracks program pitch | Clamp plan missing |
| Tool / edge | Dull edge or overload grows vibration on a soft loop | Sharp edge; regular feed lines dominate | Geometry notes missing |
| Sister OWN pointer | Stay here for milling chatter diagnosis | Live milling surface-finish for mark typology | Hole-side reamer sister page for holes |
A conditional table forces the bottleneck name onto the sheet. An unconditional "buy the anti-chatter mill" slogan is not a process. Mark typology detail stays on the live milling surface-finish peer; hole-side vibration stays on the sister reamer page.
Process checklist (conditional)
Use this checklist before RFQ. Prefer the row that matches the bottleneck you named. When tool family remains open, keep it open on the RFQ and trial under the same acceptance method.
| Decision lens | Lean rigidity / setup when… | Lean path / engagement when… | Lean tool geometry when… | Keep open / escalate when… |
|---|---|---|---|---|
| Mark type | Irregular trace tied to stick-out or clamps | Mixed with path-entry scars | Dull edge or overload on soft loop | Mark never typed |
| Stick-out / holder | Overhang long or holder soft | Path soft-entry missing | Geometry change only after setup fixed | Stick-out unknown |
| Speed band | Speed-sensitive and setup soft | Engagement overloaded at all speeds | Geometry mismatch after band noted | Unsafe to vary RPM |
| Fixture | Unsupported spans or clamp slap | Entry hits unsupported zone | Family change only after support fixed | Clamp plan missing |
| Acceptance | Visual / sound / mark method named | Same, with path notes locked | Same, with geometry notes locked | Print method unknown |
| Sister OWN pointer | Stay on chatter diagnosis here | Climb/peripheral/slot live guides for feature path | 2vs4 and three-way live guides | Wrong OWN being forced here |
| RFQ posture | State stick-out / holder / fixture notes | State ae/ap and sense notes | State family intent or open | Inputs incomplete and nobody will stop |
Procurement checklist (RFQ inputs)
Send what you know. Leave life, price, and unverified Hz fields blank. Do not invent an anti-chatter ranking or a Hz case number.
- Drawing revision and acceptance callout (visual, sound policy, or other named method).
- Material grade, condition, and coolant / MQL / dry / air-blast intent.
- Feature type and mark-type photos with scale notes.
- Stick-out, holder class, fixture clamp plan, and support notes.
- Path notes: ae/ap, entry/exit, climb versus conventional; speed-band notes if speed-sensitive (no invented Hz).
- Tool geometry: Dc, flutes, overhang, edge condition; family intent (end mill, face mill, shell mill, or open).
- Machine class and usable spindle power / torque band at planned RPM.
- Trial-cut notes and identifiers for repeat orders.

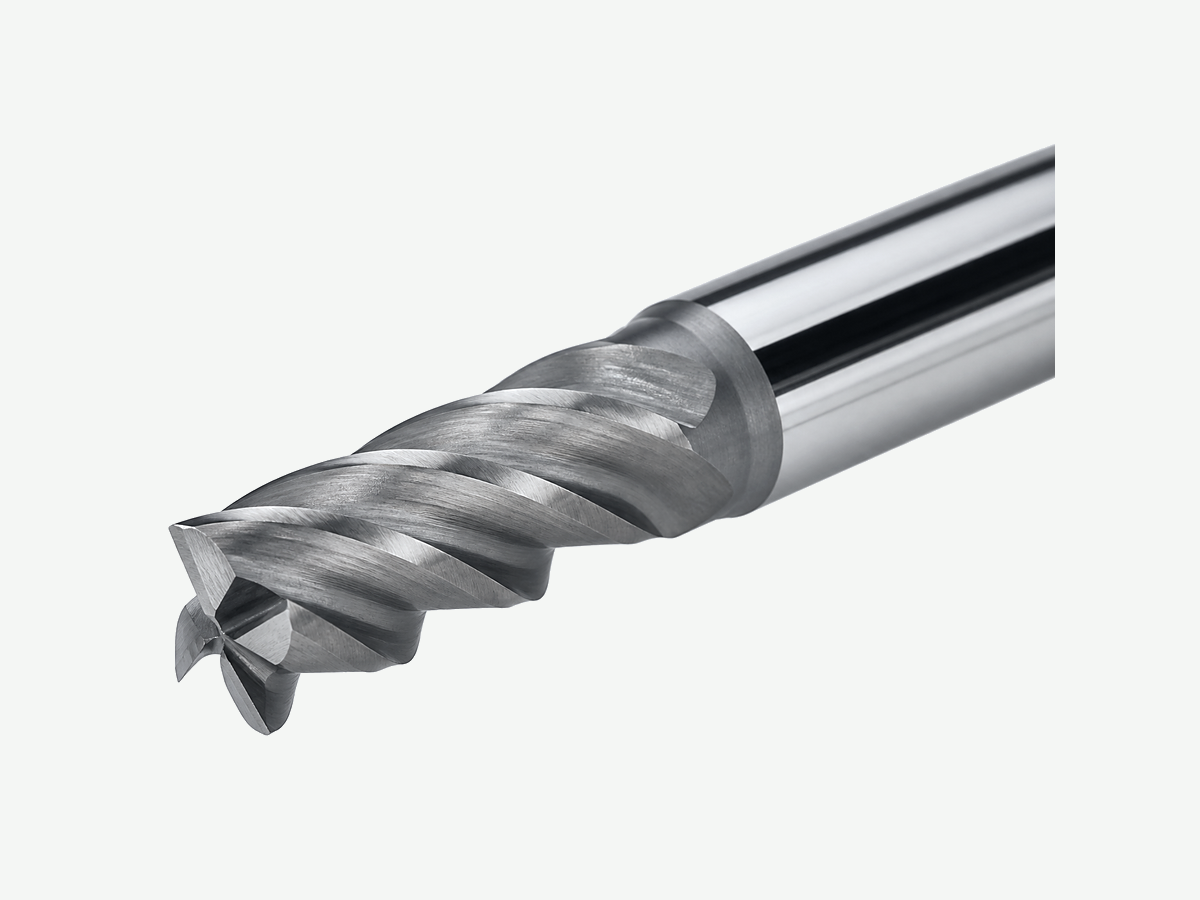

Browse live constructions here: carbide end mills. Family framing for end mills versus face or shell bodies stays on the live face mill vs shell mill vs end mill guide. Open the request form when the package is ready: custom cutting tool RFQ.
Confirm the specification with engineering support
Before ramp, confirm chatter versus feed-mark type, stick-out and fixture notes, speed-band notes if any, path and engagement, tool geometry, acceptance method, and machine power band with engineering. Hand the package for a matched chatter / vibration review, not a catalogue guess. HENTRY / HC supports drawing-based carbide end-mill and related milling proposals. No price, MOQ, or unverified lead time is stated here.
Specification fields to confirm
- Proposed tool model or drawing (end mill + holder, or face/shell mill + holder).
- Material grade / condition and coolant / air mode.
- Mark type (chatter vs feed lines vs mixed), feature type, and stick-out notes if known.
- Fixture clamp plan and support notes.
- Speed-band notes if speed-sensitive (no invented Hz claim).
- Acceptance method (visual, sound policy, or other named method).
- Machine power / torque band and holder notes.
- Family intent (end mill, face mill, shell mill, or open).
- Inspection and sample acceptance expectations.
- Identifiers needed for repeat orders.
Trial plan (minimum)
- Same drawing revision and acceptance criteria as the checklist.
- First-off record of mark type, stick-out, clamps, path, and speed-band notes before compensation edits.
- Change one variable at a time under the same acceptance intent.
- Stop when marks look abnormal, chatter grows, chips pack, size drifts, or the tool rubs on exit.
- Do not claim a family "won" without those controls, and do not invent a Hz case number from a phone photo.
Review constructions: explore carbide end mills · explore shell mills. Research portals such as this CIRP research portal and this ASME portal support industry literacy only.
Request a chatter / vibration review
Suggested enquiry subject: machining chatter - [material] - [feature] - [mark type] - [stick-out/fixture] - [family]
Machining Chatter Diagnosis FAQ
How do I tell machining chatter from regular feed marks?
Prefer irregular, wandering, or beat-pattern marks that change with stick-out, fixture clamps, or speed bands as chatter traces. Prefer regular, pitch-like ridges that scale with feed per tooth and effective flute count as feed lines. Mixed patterns are common; name the dominant type first under one acceptance method. Do not invent a Hz case number from a photo alone, and do not treat every stripe as chatter.
Which checks should I run before opening an RFQ for chatter?
Photograph and name the mark type, lock stick-out and holder class, name fixture clamp and support notes, record whether the mark is speed-sensitive without inventing a Hz value, review ae/ap and entry/exit, and check edge condition. Prefer changing one setup lever at a time under the same acceptance method. Prefer sending incomplete fields openly rather than guessing a SKU.
When should I shorten stick-out before changing the cutter family?
Prefer shortening stick-out and stiffening the holder when the mark softens as overhang shrinks or when the mark tracks clamps and a soft loop. Prefer opening family questions only after stick-out and fixture notes are named. Prefer not inventing life or coating claims as a substitute for a soft setup.
Can I publish a resonant frequency from a shop phone video?
No. Prefer recording qualitative speed-band notes when the mark is clearly speed-sensitive, under the same engagement and acceptance method. Prefer leaving unverified Hz fields blank on RFQ. Do not invent a resonant frequency, life percentage, price, or ROI claim from a phone video alone.
Does more flutes always stop chatter?
No. Flute count changes chip load and gullet space, and can help or hurt depending on material, feature, and evacuation. Prefer naming flute intent beside stick-out, engagement, and chip packing risk. Flute-count gates stay on the live 2-versus-4 guide; this page only gates chatter diagnosis and rigidity levers.
Which inputs should I send in an RFQ for a chatter / vibration review?
Send drawing revision, material and coolant or air intent, feature type, mark-type photos, stick-out and holder notes, fixture clamp plan, path and speed-band notes if any, tool geometry and edge condition, machine power band, acceptance method, trial notes, and family intent or open. Leave unverified life, price, and Hz fields blank.
Does this page replace the milling surface-finish or reamer chatter pages?
No. The live milling surface-finish guide keeps milling tool-mark typology and finish-versus-rough literacy OWN. The live PCD reamer chatter page keeps hole-side vibration diagnosis OWN as a sister mutual-point. Face-milling process detail, three-way face/shell/end taxonomy, milling-tools navigation, slot selection, peripheral milling, climb versus conventional, and 2-versus-4 each keep their live OWN. This page owns machining chatter definition and feed-mark boundary, common causes, shop diagnosis order, mitigation and rigidity directions, the conditional process checklist, and the RFQ checklist only.
When does this page not apply?
It does not apply when you need invented life percentages, prices, ROI, Hz case numbers, or unverified case counts; when you need an unconditional anti-chatter mill ranking; when you need a milling tool-mark encyclopedia, reamer chatter encyclopedia, slot or T-slot selection book, face-milling process encyclopedia, fly-cutter versus face-mill encyclopedia, 2-versus-4 flute encyclopedia, coatings or size-chart books, full SFM library, climb long guide, peripheral process book, or holemaking OWN; or when mark type, stick-out, fixture, and acceptance notes are missing. Fix the inputs first.
