TECHNICAL GUIDE

When a finished aluminum bore drifts out of tolerance, the cause is rarely just one number on a tool drawing. Diameter shift, taper, bellmouth, chatter marks, poor roughness, burrs and built-up edge can come from the pre-hole, holder runout, coolant, allowance, tool wear or cutting geometry. A PCD reamer can help stabilize the process, but only when the tool is designed around the real hole condition instead of treated as a simple replacement for carbide.

This guide explains how PCD reamers control hole accuracy and surface finish in aluminum and high-silicon aluminum machining. It covers the cutting-edge mechanism, dimensional control, roundness, cylindricity, surface roughness, coolant, chip evacuation, guide support and the process checks needed before a PCD reamer can deliver repeatable production results.

Engineering takeawayA PCD reamer controls bore quality only when the cutting edge, guide support, runout, coolant, allowance and machine condition work together. Diamond reduces wear and aluminum adhesion; process control turns that advantage into a stable bore.

What Does Hole Accuracy Mean in PCD Reaming?

Hole accuracy is more than the final diameter. In a production bore, engineers usually care about size, roundness, cylindricity, straightness, taper, concentricity to a datum and the relationship between stepped diameters. A reamed hole can meet diameter at one measurement point and still fail because the bore is tapered, out of round or unstable after cooling.

This is why a PCD reamer should be evaluated as part of a holemaking system. The reamer follows the pre-hole, responds to machine alignment and cuts under the influence of coolant, workpiece elasticity and holder condition. If the pre-hole is badly positioned, interrupted, inconsistent in allowance or affected by fixture distortion, the finishing tool has less room to correct the error.

For a new application, XRZ Precision normally needs the drawing, material grade, silicon content, bore depth, tolerance, surface finish target, allowance, machine interface, holder details, coolant condition and current failure mode. That information helps decide whether a custom PCD reamer, a guide-supported tool, a step reamer, a combination tool or another finishing process is the right direction.

Discuss Your Application when a hole-quality issue needs review before tool design.

Why PCD Helps Maintain Bore Size

PCD is selected for many aluminum and high-silicon aluminum applications because diamond has high wear resistance and a sharp cutting edge can remain stable for longer than many conventional tool materials in suitable non-ferrous work. When the edge wears slowly, the effective cutting diameter changes more slowly, which helps protect bore size across a production run.

The cutting edge matters as much as the cutting material. A sharp and consistent PCD edge reduces rubbing, lowers the tendency for material to smear on the bore wall and helps the tool cut at the intended diameter. Polished chip-contact surfaces can also reduce aluminum adhesion. Major tooling suppliers commonly connect PCD reamers with sharp cutting edges, low-friction rake surfaces, high-quality surface finishes and high-precision holes.

However, PCD does not automatically make every hole accurate. If the toolholder has excessive runout, the machine is not aligned, coolant cannot reach the cutting edge or the pre-hole allowance varies too much, the final bore can still drift. In practice, PCD gives the process a more stable cutting edge; the full setup decides how much of that stability reaches the workpiece.

How Surface Finish Is Controlled

Surface finish in reaming is controlled by the interaction of edge sharpness, cutting geometry, feed, allowance, coolant, chip evacuation, tool stability and workpiece material. In aluminum, the finish can deteriorate when chips recut the bore wall, when built-up edge forms on the cutting edge, when the tool rubs instead of cutting or when vibration marks appear.

A PCD reamer helps because a sharp diamond edge can shear aluminum cleanly and a low-friction rake surface can reduce adhesion. In high-silicon aluminum, PCD's wear resistance is especially useful because silicon particles are abrasive. As the cutting edge resists abrasive wear, the tool is more likely to maintain a stable surface finish over repeated parts.

Still, the surface roughness target should not be treated as a tool-material promise. The finish also depends on feed per revolution, spindle speed, hole depth, coolant pressure, chip path, fixture rigidity and whether the bore has cross holes or interrupted sections. If chips are trapped in a blind bore or coolant does not flush the cutting zone, even a well-made PCD reamer can leave scratches or inconsistent roughness.

Six Variables That Control the Finished Bore

VariableWhat it affectsWhat to verify
Pre-hole and allowanceCutting load, tracking, taper and rubbingSize trend, position, roundness and stock consistency
Assembled runoutDiameter, roundness, edge load and wearSpindle, holder, interface and cutting-edge runout
PCD edge geometryShearing, adhesion, burrs and effective diameterRake, relief, lead, edge preparation and wear
Guide supportStability, chatter and bore geometryBore length, cross holes, interrupted cuts and contact
Coolant and chipsBUE, scratches, temperature and finishDirection, pressure, flow, concentration and chip exit
Measurement systemAcceptance and corrective decisionsDatum, part temperature, gauge method and trend data

Runout and Effective Cutting Diameter

Runout is one of the most important links between the tool and the final hole. If the spindle, holder, collet, hydraulic chuck, shrink fit or tool body introduces excessive radial error, one edge may cut more than the others. That can affect diameter, roundness, edge wear and surface finish.

For a multi-edge PCD reamer, controlled runout supports even cutting load. When the edges share the work more evenly, the bore is less likely to show chatter, lobing or one-sided wear. For a single-edge or guide-pad design, the relationship between cutting edge, guide support and bore contact becomes even more important because the guide system helps stabilize the tool inside the hole.

This is also why inspection records matter. A tool drawing can show the nominal diameter, but the process needs to know the measured cutting diameter, runout and critical geometry. XRZ's manufacturing and inspection capability includes advanced grinding, PCD profile machining and tool inspection resources that support repeatability from sample approval to batch production. See related XRZ capability information on custom cutting tools.

The Role of Guide Support and Tool Structure

Some holes can be finished with a simple straight PCD reamer. Others need guide pads, support lands, a step structure or a combination tool. The correct structure depends on bore length, interrupted cuts, cross holes, thin walls, datum strategy and the relationship between multiple diameters.

Guide-supported PCD reamers can help stabilize the tool in long or demanding bores by reducing vibration and supporting the cutting edge relative to the hole. This can be useful for valve bodies, compressor components, transmission housings and other components where bore geometry must remain consistent along the length. Multi-step PCD reamers can also reduce accumulated alignment error when several related diameters are finished in one tool path.

The risk is overbuilding the tool. A complex tool may improve coaxial control and reduce tool changes, but it can also make chip evacuation, regrind strategy and adjustment more demanding. The manufacturer should explain why the structure is needed and what process conditions must be controlled for it to work. Relevant product categories include PCD combination reamers and custom step reamers.

Allowance and Pre-Hole Quality Decide How the Reamer Cuts

A PCD reamer is a finishing tool, not a repair tool for every pre-hole problem. If allowance is too low, the edge may rub instead of cut, which can damage surface finish and create unstable size. If allowance is too high or inconsistent, cutting forces rise, chips become harder to control and the tool may follow pre-hole error instead of producing the intended geometry.

The pre-hole also affects surface finish. A drilled or bored hole with heavy feed marks, poor roundness, offset, work hardening, casting defects or trapped chips can make the reaming result unpredictable. In high-volume aluminum machining, the roughing, semi-finishing and finishing sequence should be planned together.

For this reason, a good PCD reamer quote should include questions about the operation before reaming. The supplier should ask how the hole is produced, how much stock remains, whether the bore is blind or through, whether there are cross holes and how the current defect appears in measurement data.

Coolant, Chip Evacuation and Built-Up Edge

Coolant is not only for temperature control. In PCD reaming, coolant delivery helps flush chips, reduce adhesion, control heat and protect the finished surface. Internal coolant can be especially useful in deep holes, blind holes and bores where chips might recut the wall. Published research on aluminum alloy reaming with PCD tools shows that cooling strategy and cutting parameters can strongly influence chip morphology, hole diameter and surface roughness.

Built-up edge is another common reason surface finish and diameter become unstable. When aluminum adheres to the cutting edge, the effective edge geometry changes. The tool may cut oversize or undersize, leave a smeared finish, generate burrs or behave differently part to part. PCD's low-friction surface and sharp edge can reduce this tendency, but the process still needs enough coolant, suitable speed and feed, correct edge preparation and chip space.

Do not compensate before diagnosing.If built-up edge appears repeatedly, do not only increase tool diameter. First check coolant direction, concentration or MQL condition, chip evacuation, material batch, feed, spindle speed, edge condition and pre-hole allowance.

Related troubleshooting: PCD reamer undersize hole diagnosis.

When PCD Is Better Than Carbide, Boring or Honing

PCD reamers are most attractive in suitable non-ferrous production applications where abrasive wear, edge stability and repeatable surface finish matter. Aluminum, ADC12, A380, high-silicon aluminum and similar materials are common candidates, especially in automotive and EV components where many holes must be finished repeatedly.

Carbide may be better for short runs, lower-volume jobs, prototypes, unsuitable materials or applications where PCD cost cannot be justified. Fine boring may be better when diameter adjustment is required on the machine or when the bore condition needs a different type of correction. Honing may be needed when the surface texture, geometry or functional requirement goes beyond what reaming can produce.

The practical question is not “Is PCD better?” The better question is “Does this material, hole geometry, volume and tolerance stack give PCD enough opportunity to reduce cost per good part?” A responsible manufacturer should help answer that question before recommending a tool.

Compare Cost per Finished Part if you are deciding between carbide reaming, PCD reaming, boring or honing.

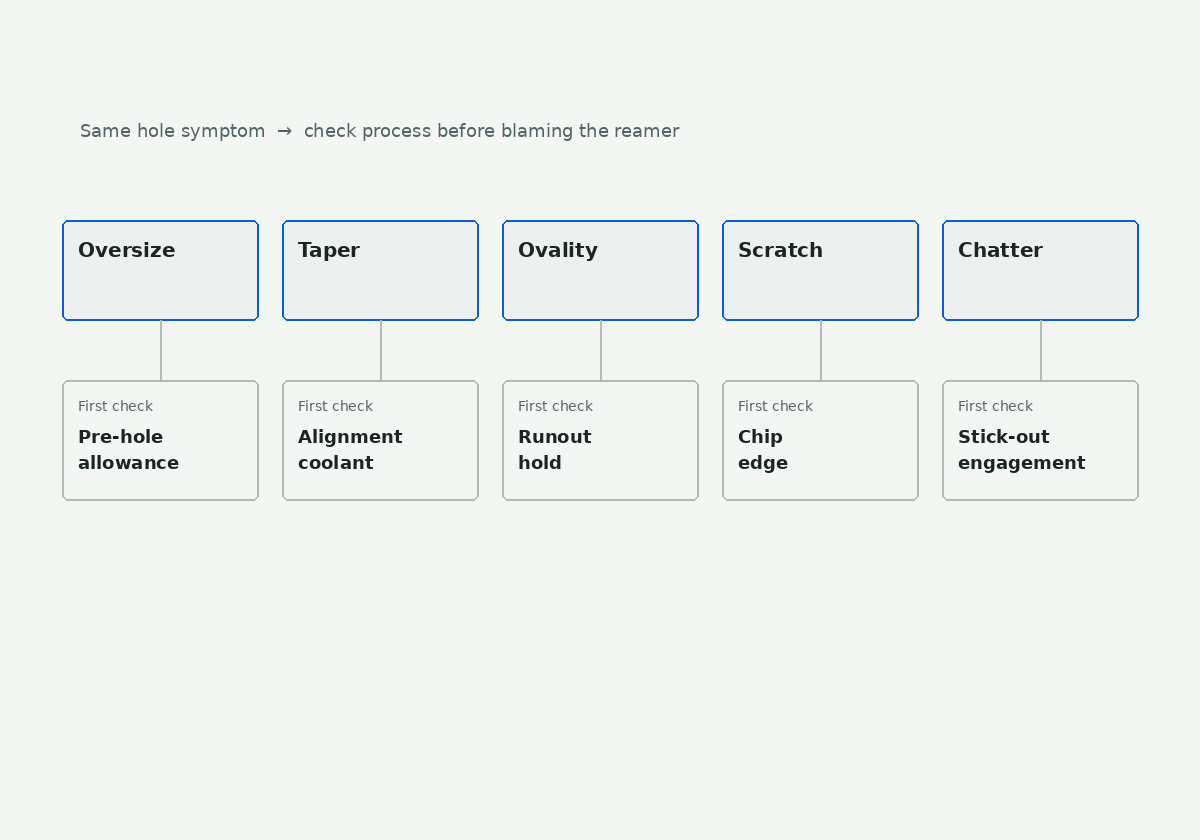

Process Checks Before Judging the PCD Reamer

  1. Confirm measurement first. Check the gauge method, datum setup and part temperature.
  2. Inspect the incoming hole. Measure pre-hole size, position, allowance and geometric variation.
  3. Verify the assembled system. Check holder runout, spindle condition, rigidity and alignment.
  4. Review coolant and chips. Confirm delivery, pressure, flow and whether chips recut the bore.
  5. Inspect the cutting edge. Look for wear, chipping, aluminum adhesion and entry or exit damage.

This sequence prevents the wrong correction. Enlarging a tool to solve an undersize bore may hide springback, rubbing or measurement error. Reducing feed to improve finish may increase rubbing if the edge stops cutting properly. Increasing coolant pressure may help chip evacuation, but it will not fix poor holder runout.

For repeat production, record the approved setup. Tool drawing, measured diameter, runout, holder, coolant, pre-hole allowance, cutting parameters and inspection method should be traceable. This makes repeat orders, regrinds and process troubleshooting much easier for both the end user and distributor.

RFQ Data for a Hole Accuracy and Finish Review

To review a PCD reamer application, XRZ Precision needs more than diameter and quantity. Send the component drawing, material grade, silicon content, hole diameter and depth, tolerance, roundness or cylindricity requirement, surface roughness target, pre-hole size, allowance, machine model, spindle interface, toolholder type, coolant pressure and flow, current tool life, cycle time and scrap issue.

Photos of the bore surface, measurement reports and used-tool edge images are also useful. If the problem is dimensional drift, share the measurement trend across parts. If the problem is roughness, burrs or scratches, show where the defect appears in the bore and whether it changes after tool cleaning or coolant adjustment.

With this information, XRZ can review whether the application needs a standard PCD reamer concept, a custom guide-supported tool, a step reamer, a combination drill-reamer, a process parameter change or a different finishing method.

ENGINEERING REVIEW
Reviewed by Jiack LiuEngineering Director · XRZ Precision

This guide uses a system-level approach: tool design recommendations should be validated against the actual component, pre-hole, machine, holder, coolant and inspection method.

Frequently Asked Questions

Do PCD reamers always improve hole accuracy?

No. PCD can improve edge stability and wear resistance in suitable non-ferrous materials, but hole accuracy still depends on pre-hole quality, holder runout, machine alignment, coolant, allowance, tool geometry and measurement control.

Why can a PCD reamer improve surface finish in aluminum?

A sharp PCD cutting edge and low-friction chip-contact surface can shear aluminum cleanly and reduce adhesion. This helps control smearing, built-up edge and roughness when coolant, feed, speed and chip evacuation are also suitable.

What causes poor surface finish after PCD reaming?

Common causes include built-up edge, chip recutting, insufficient coolant, unstable allowance, excessive runout, vibration, edge wear, wrong feed or speed, and defects from the pre-hole operation.

When should a PCD reamer use guide pads?

Guide support may be useful in long bores, precision valve-body holes, interrupted bores, cross-hole features or applications where tool stability and bore geometry are difficult to maintain. The decision should be based on the drawing, bore depth, tolerance and machine condition.

What data should be sent for a PCD reamer quotation?

Send the drawing, material grade, silicon content, hole size and depth, tolerance, surface finish target, pre-hole allowance, machine and holder details, coolant condition, current failure mode, tool life target and annual volume.
