Aluminum Housing Bearing Bore Finishing — Path and RFQ
The housing is aluminum and the bearing bore is tight—but it is not an e-motor case. The inverter shell, controller box, or general Al enclosure still needs an honest drill→ream stack, not a motor-housing essay pasted into the RFQ.
This page owns aluminum housing bearing bore finishing across industries: failure modes short, universal stack path, when PCD vs carbide ream, and RFQ. EV motor-housing-specific notes live on EV Motor Housing Bearing Bore Finishing. Broader holes-and-faces mapping stays on Aluminum EV Housings. XRZ quotes from your housing print with critical bores marked (sample validation · Custom Cutting Tool RFQ).

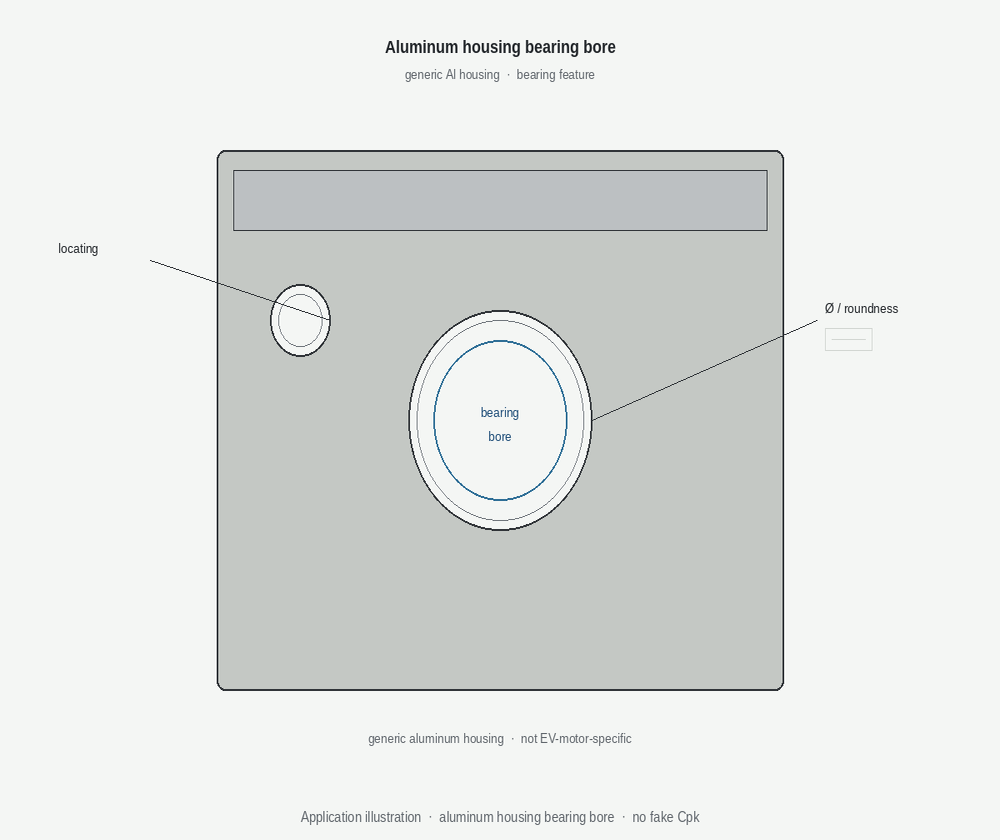

Al bearing bore failure modes (short)
| Failure signal | What usually drives it |
|---|---|
| Ø out / taper | Pre-hole band unknown; allowance frozen too late |
| Roundness / oval after unclamp | Thin wall + clamp strategy before finish call |
| Bore-to-bore alignment | Separate setups without a shared axis plan — soft EV Housing Coaxial Bore Machining (sibling) |
| Finish / chatter | Runout, stickout, or edge prep vs Si% — soft diagnosis |
Soft diagnosis only: PCD reamer pre-hole quality · PCD reamer chatter diagnosis. Do not paste accuracy-diagnosis encyclopedias here.
Universal stack path
- Create-hole — Solid Carbide Drill.
- Measure incoming diameter band before freezing reamer allowance.
- Finish — Custom PCD Reamer when diameter, roundness, or finish must hold.
Combination tools earn a station only when cycle time and capability justify them—soft Drill-then-ream vs PCD combination · Combination Drill-Reamer.
When PCD vs carbide ream
| Gate | Posture |
|---|---|
| Fit-critical bearing bore on Al / Al-Si | PCD ream after controlled pre-hole is the usual finish call |
| Looser clearance / non-gauge openings | Often stay on carbide create-hole |
| Abrasive Si% / edge-life limiter | Soft Si% guide · vs carbide · application High-Si Al holes (sibling) |
Not every aluminum housing bore needs PCD—mark critical bearing bores on the print.

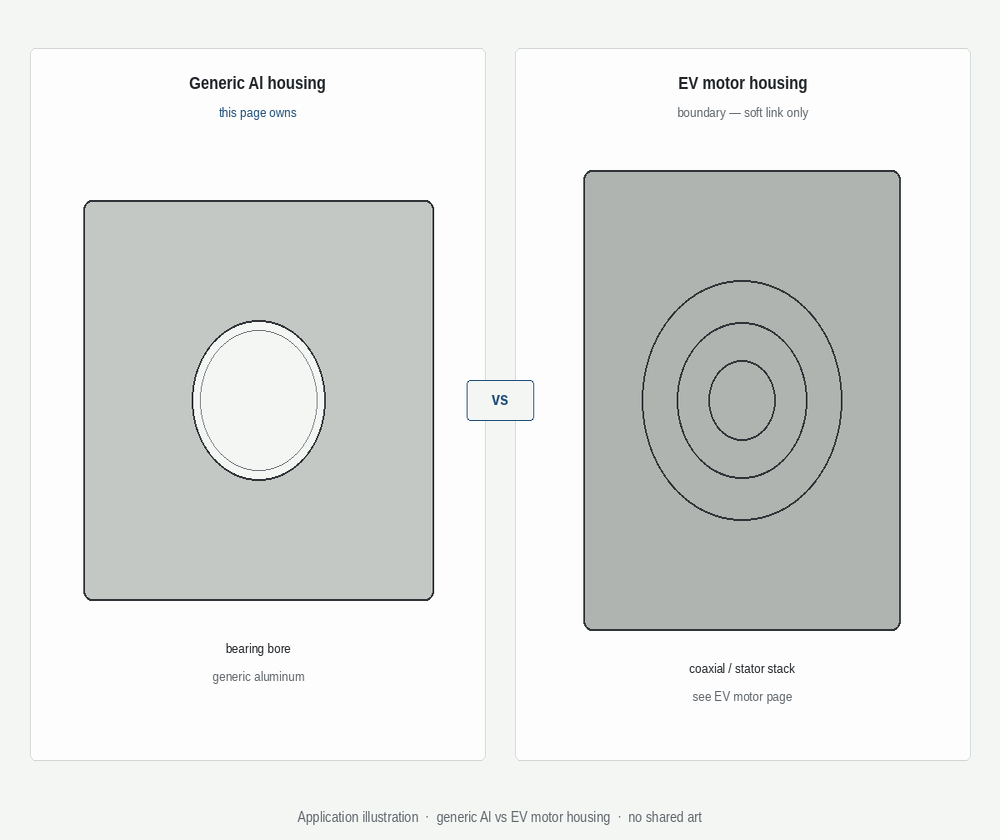

Boundary vs #9 / #3 / #16
| Page | Owns |
|---|---|
| EV Motor Housing (#9) | EV motor housing bearing |
| Aluminum EV Housings (#3) | Housing holes and sealing faces map |
| Pump Housing Bearing Bore (#16) | Pump scene |
| This page (#17) | Generic Al / multi-industry housing bearing finishing |
Milling supporting only when a face lands on the same print.
RFQ pack
| Must send | Why |
|---|---|
| Housing print + revision; critical bearing bores marked | Separates finish bores from clearance |
| Hole chart: Ø, depth, tol, roundness/alignment | Freezes drill vs ream scope |
| Alloy + Si% | Wear discussion—not a life promise |
| Pre-hole method + measured allowance | Incoming band before geometry freeze |
| Holder, stickout, measured runout, coolant | Trial realism |
| Volume band + sample yes/no + written acceptance | First-article before production talk |
Checklist: PCD Reamer RFQ Checklist.
Tool match pointers (short cards)
| Need | Open |
|---|---|
| Bearing-bore finish | Custom PCD Reamer |
| Create-hole | Solid Carbide Drill |
| Housing holes & faces map | Soft → Aluminum EV Housings |
Can I use this page for non-EV aluminum housings?
Yes. This page is the cross-industry Al housing bearing-bore path—inverter shells, controller boxes, general Al enclosures, and similar. Send the print via Custom Cutting Tool RFQ.
How does this differ from EV motor housing bearing bore finishing?
EV Motor Housing owns motor-case bearing specifics. This page keeps the generic Al housing bearing finishing path and RFQ without restating the motor essay. Use #9 for e-motor housings; use this page for other Al housings.
Do I always need PCD for aluminum bearing bores?
No. PCD belongs on fit-critical bearing and precision bores after a controlled pre-hole. Clearance openings often stay on the carbide create-hole path. Soft: PCD vs carbide reamer.
What RFQ fields matter most for bore finishing?
Critical bores marked, hole chart, Si%, pre-hole/allowance, measured runout/holder/coolant, and written sample acceptance. Upload via Custom Cutting Tool RFQ · RFQ Checklist.
Send the housing print—we’ll map Al bearing-bore drill → PCD ream
Mark critical bearing bores beyond e-motor cases. Si%, allowance, and runout on the sheet.
