A custom PCD reamer is an application-engineered tool, matched to the finished bore, the material, the machine, the coolant and the production target. Two quotations for the same drawing can show the same diameter and a similar price and still lead to different results on the line. The difference sits in how each supplier handles the drawing, the incoming hole, inspection, the trial and the reorder.
To shortlist a custom PCD reamer supplier, check seven things before you compare quotes: how it reviews and controls your drawing, whether it asks about the material and the pre-hole, what inspection record ships with the tool, whether sample acceptance is written before the trial, how it handles trial feedback, how it freezes the approved revision for reorders, and how it regrinds or re-tips a worn tool.
XRZ makes custom PCD reamers, so hold us to the same seven criteria as every other supplier on your list. Each criterion gives the question to ask, what a usable answer contains, and when to be careful. Once you have a shortlist, the process engineer's manufacturer evaluation checklist takes the same candidates through a deeper audit of evidence, traceability and lead-time assumptions.

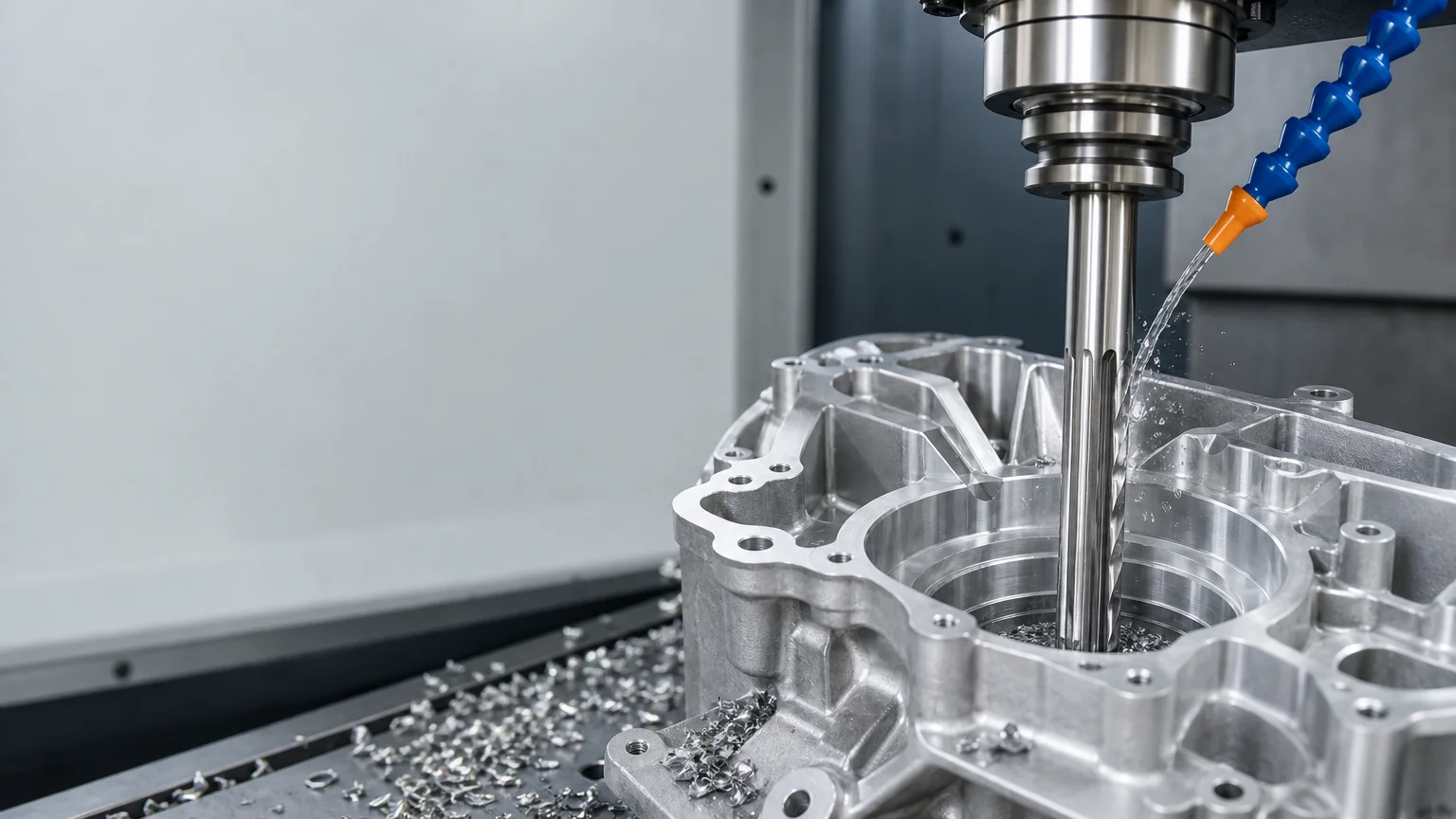

What a Custom PCD Reamer Supplier Has to Get Right
A custom PCD reamer is designed from the finished feature. Nominal diameter alone does not define it. The supplier should review the drawing revision, bore tolerance, depth, surface finish, pre-hole condition, machine interface, holder, coolant, production volume and current failure mode.
PCD is generally most attractive for suitable non-ferrous and abrasive materials. High-silicon aluminum can accelerate carbide wear, while aluminum can create built-up edge when cutting geometry and edge preparation are poorly matched. PCD reamers can support stable finishing, but the result still depends on the complete machining system.
So the useful test for each supplier is whether it can explain how it will control finished-bore accuracy, roundness, cylindricity, surface condition, chip evacuation and tool wear, and how the result will be accepted. A measured tool runout value is not the same as a guaranteed finished-hole tolerance. The acceptance method has to be agreed before the tool is released for production.
1. Drawing Control and Print Review
Ask: What will you send back after you review our drawing?
A usable answer: a question list for any data that is missing, then a proposed tool concept with the open risks named, then a tool drawing for your sign-off. That drawing should fix the critical diameters, the geometry, the inspection points and a revision identifier before metal is cut. Every later record, from the inspection report to the sample result and the reorder, should point back to that revision.
Be careful when a price arrives from nominal diameter and annual quantity alone, with no questions about the bore, the incoming hole or how the bore will be measured.
What happens between the signed tool drawing and the finished tool, from body preparation and PCD segment work to grinding and inspection, is covered in how PCD reamers are made.
2. Material Fit and the Pre-Hole Route
Ask: Is PCD the right cutting material for this bore, and what does the reamer need from the hole before it?
A usable answer starts with the material: the alloy, the silicon content for aluminum, and the casting condition. The supplier should also say plainly when a bore belongs to another cutting material. Steel, cast iron and stainless steel go to carbide, cermet or PcBN tooling, because diamond reacts with iron at cutting temperature.
The answer should then cover the incoming hole: the pre-hole size band and allowance, roundness, axis position, wall condition and any cross-hole step. A finishing reamer sizes and finishes the wall it is given, and it cannot correct a walked axis. Before the reamer geometry is frozen, the review should name which tool creates the hole, which tool finishes it, and who is responsible for each step of that route.
Be careful when every bore problem is answered with a new reamer geometry before anyone has checked the pre-hole, the holder runout at production stickout and the gauge practice. The pre-hole quality gate lists the go and no-go cues to check before reaming.
3. Inspection Records That Match the Bore Job
Ask: Which characteristics will be on the record that ships with the tool, and against which drawing revision?
A usable answer names the fields:
- tool ID or serial, and the approved drawing with its revision
- actual cutting diameters, step lengths and profile
- runout or concentricity, with the position where it was measured, when the control plan includes it
- an edge-condition note on the PCD edges and brazed pockets
- coolant passages and outlets, when they are on the drawing
- preset data, when presetting is in the agreed scope
- pass or fail against the accept rule you wrote
The supplier should also state the boundary of that record. It proves the tool characteristics under the stated method. Finished-hole capability is confirmed on your machine, fixture, holder, coolant, cutting data and measurement system.
Be careful when the offer says the tools are fully inspected but cannot name the characteristics, the method or the report fields. Edge photos support trust; they are no substitute for a field list. Our guide to the inspection pack to require separates sample depth from production-lot depth.
4. Written Sample Acceptance Before the First Cut
Ask: What will this sample have to prove, and who decides pass or fail?
A usable answer is a written acceptance list agreed before the first sample cut. It states which characteristics are in scope this round, such as diameter, form, roughness, burr, cycle time and wear observation. It names the gauge method, temperature practice and sampling plan, and who signs pass or fail: the buyer, the supplier or a joint review. It also says what is out of scope this round, for example life claims or transfer to another machine. Machine, holder, coolant and pre-hole state are recorded with each data point, and the sample quantity and the number of revision rounds included are written down too.
Be careful when the plan amounts to "try it and let us know", or when one good first-off part is treated as release. Unwritten acceptance turns every soft scrap into a commercial argument. The stages, pass table and release sign-off are set out in our sample validation process.
5. Trial Feedback Handling
Ask: If the trial fails, what do you need from us, and what happens next?
A usable answer lists the data the supplier wants back: measured size, finish and position, tool photos, chip photos, and any parameter changes made on the floor. The supplier reviews the measurement data before rewriting the tool and separates tool causes from process causes, such as allowance, springback, alignment, coolant, measurement and workpiece variation. Any change to the tool, the program or the setup is recorded against its revision and judged against the same acceptance table. When a combination tool is unstable, a usable answer may also be to split the process, for example drill first and then ream.
Be careful when changes from different rounds are mixed without a record, so that nobody can say which change fixed or broke the bore.
6. Revision Freeze After Sign-Off and First-Piece Follow-Up
Ask: How will next year's reorder match the tool we approved?
A usable answer sets out a release step. The sample results meet the written list for that revision, critical inspection data are archived against the tool revision, and the buyer signs off. The approved revision is then frozen, the acceptance table is kept with the purchase order, and repeat orders are built to that revision. A print change after release starts a new revision path. A new sample is needed when the material, machine, holder or tolerance stack changes enough to invalidate the earlier evidence.
Release is also not the end of the thread. When the first production pieces bring the scrap mode back, the supplier should still have a named contact working on it, with the drawing, the written acceptance and the first-piece data in hand.
Be careful when the supplier cannot tell you which revision identifier your last tool was built to.
7. Regrind and Re-Tip Route
Ask: When the edge wears, what happens to the tool we send back?
A usable answer starts with incoming inspection: remaining PCD, body, pockets and diameter allowance, before any proposal to regrind, re-tip or replace. What will be restored is written down before grinding. After service, diameter, runout, pads and edge are requalified against the current approved revision, and a first article on the production holder, coolant and gauge comes before volume.
On the buyer side, photograph the used edge, the pads and the bore scrap mode before the tool goes in the box, and return it before a crash. Wear that has eaten through the diamond into the joint turns a reconditioning job into a replacement.
Be careful when a fixed number of regrinds is promised before anyone has looked at the returned tool. Return triggers and the requalification list are in our PCD reamer regrind and requalify guide.
When Is PCD a Better Choice Than Carbide?
PCD is usually worth serious consideration when abrasive wear, bore-size drift, surface-finish variation or frequent tool changes are limiting production in suitable non-ferrous materials. This includes many aluminum components, especially when silicon content or hard inclusions shorten carbide tool life.
Carbide remains the broader direction for steel, stainless steel, cast iron and mixed-material applications. It can also be more practical for low-volume work, frequent part changes, unstable setups, severe interruptions, or applications where the expected production volume does not justify a specialized PCD tool.
The decision should compare cost per acceptable component, with the purchase price as one line in it. Include tool changes, setup labor, machine downtime, inspection after changes, scrap, reconditioning, and the effect of bore variation on assembly. A PCD reamer may have a higher initial price and still produce a lower lifecycle cost, but that conclusion should come from an application trial. The method is worked through in cost per accepted hole for PCD and carbide reamers.
Pre-hole quality, assembled runout, machine rigidity, fixture support, coolant delivery, chip evacuation and gauge method can limit the finished bore whatever the cutting material.
What Should a Custom PCD Reamer Quotation Include?
A useful quotation makes the proposed tool architecture and acceptance scope understandable before production begins. The supplier should state its assumptions and the information it still needs from you. Expect it to be built on:
- part drawing, model, revision and relevant GD&T
- material grade, hardness, silicon content, casting condition or abrasive inclusions
- finished diameter, tolerance, depth, roundness, cylindricity, straightness and surface-finish requirements
- through-hole, blind-hole, cross-hole, interrupted, stepped, chamfered or formed geometry
- pre-hole size range, position, allowance, burr condition and current tool route
- machine, holder, spindle limits, overhang, assembled runout, fixture and clamping
- coolant type, pressure, filtration, MQL conditions and chip-removal constraints
- production volume, current tool life, changeover impact, validation quantity and target timing
- inspection points, report requirements, sampling plan, NDA needs and repeat-order expectations
If two shortlisted suppliers received different information, their quotations cannot be compared. Send the same pack to each, using the field list in our PCD reamer RFQ checklist.
How XRZ Works Through These Criteria
We design custom PCD reamers around the finished bore and the complete machining process. The review can include material grade, silicon content, bore diameter, tolerance, depth, surface finish, pre-hole condition, machine, holder, coolant, production volume and the current process problem. Our configurations include straight reamers, guide-pad reamers, step and form reamers, combination tools, drill-reamers and other custom geometries, and the design can define guidance, coolant delivery, connection, cutting-edge arrangement and inspection points.
Work runs through application review, concept, drawing approval, manufacture and inspection, sample validation, release and lifecycle tracking, and each step names what you approve or receive. The structures, materials and pre-shipment checks are on our custom PCD reamer page.
What we do
- Drawing-based customization focused on the finished bore and the complete process
- A configuration range that includes guide-pad, step, form, combination and drill-reamer designs
- Defined inspection and validation stages before repeat supply
- Approved specifications and revision notes that support repeat orders
- Support for OEM, distributor and private-label projects, with identification, packaging and documentation set by written agreement
What needs written project review
- Final pricing, inspection scope, delivery terms and acceptance criteria
- PCD suitability, which depends on the application. PCD is not presented as a solution for steel, cast iron or every aluminum bore
Request a Review of Your PCD Reamer Application
The right custom PCD reamer fits the material, the finished bore, the incoming hole, the machine, the coolant, the production volume and the acceptance method.
When a standard reamer does not address your bore stability, wear, cycle time or multi-operation requirements, the next step is a drawing-based technical review. We assess the part, material, tolerance, pre-hole, machine, holder, coolant, production target and current process before defining the quotation scope. Send your drawing for an engineering review, and we will come back with the open questions, a proposed concept and the sample scope.
Frequently Asked Questions
What should a PCD reamer supplier send back after reviewing my drawing?
A question list for any missing data, a proposed tool concept with its open risks, and a tool drawing that fixes the critical diameters, geometry, inspection points and revision identifier for your sign-off. A sample plan for your approval follows once the drawing is agreed.
What materials are suitable for a custom PCD reamer?
Typical candidates include aluminum, high-silicon aluminum, copper, brass, and selected abrasive non-ferrous or composite materials. Steel and cast iron generally require carbide, cermet, PcBN, or another material matched to the operation.
Can a custom PCD reamer combine drilling and finishing?
Yes, a combination tool can integrate drilling, reaming, piloting, chamfering, or other features when the hole condition, chip space, guidance, and machine setup support the design. Separate tools may remain preferable when create-hole instability or chip packing would compromise finishing.
How does a supplier validate a custom PCD reamer?
Tool inspection normally checks drawing-defined dimensions, cutting-edge condition, guidance, coolant features, and any agreed runout points. Sample validation then checks the finished component under the specified machine, fixture, coolant, cutting data, and measurement conditions.
Is PCD always more economical than carbide?
No. PCD can reduce tool changes and wear-related variation in suitable high-volume applications, but carbide may be more economical for low volume, mixed materials, unstable setups, or ferrous machining. Compare cost per acceptable component, with purchase price as one part of it.
What information should be included in a PCD reamer RFQ?
Provide the part drawing and revision, material, finished bore requirements, pre-hole condition, machine and holder, coolant, current process, production volume, inspection method, and the specific quality or productivity problem. With these details the supplier can propose a tool architecture and validation plan from the whole application, with the diameter as one input.
